Head-Up Display

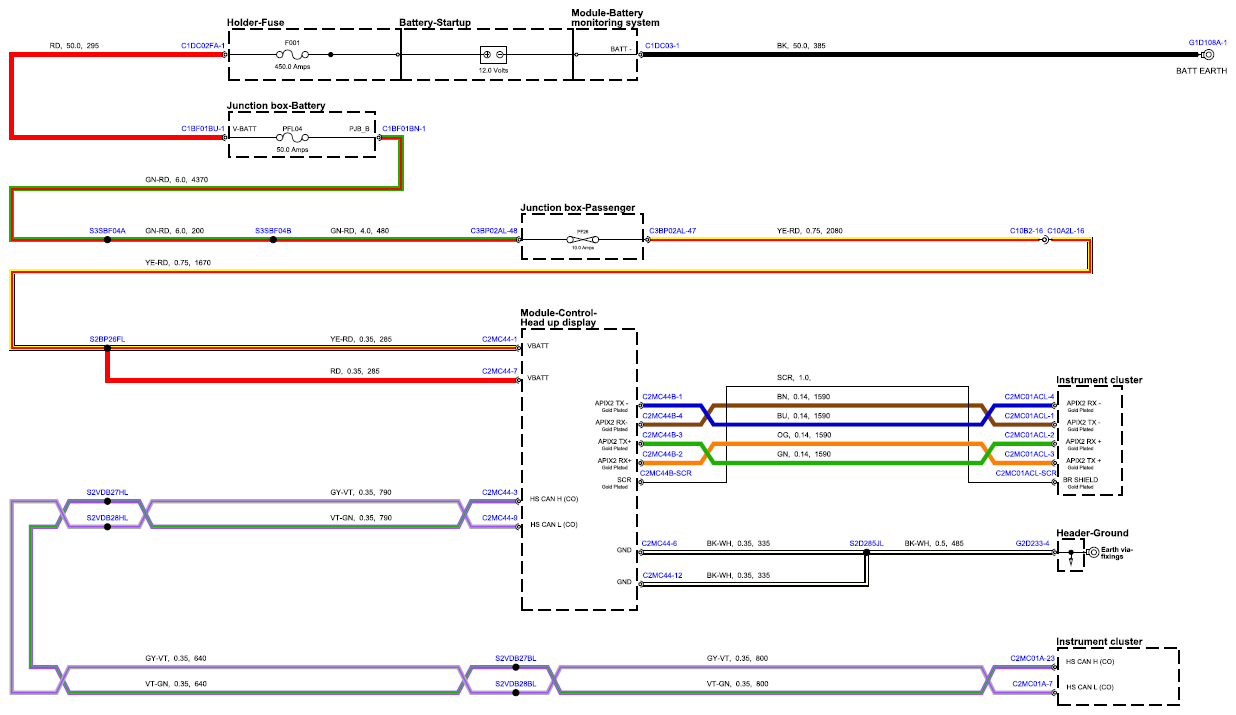

Fig 1: Information And Message Center Circuit Diagram - Head-Up Display (Sheet 1)
G15680578Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

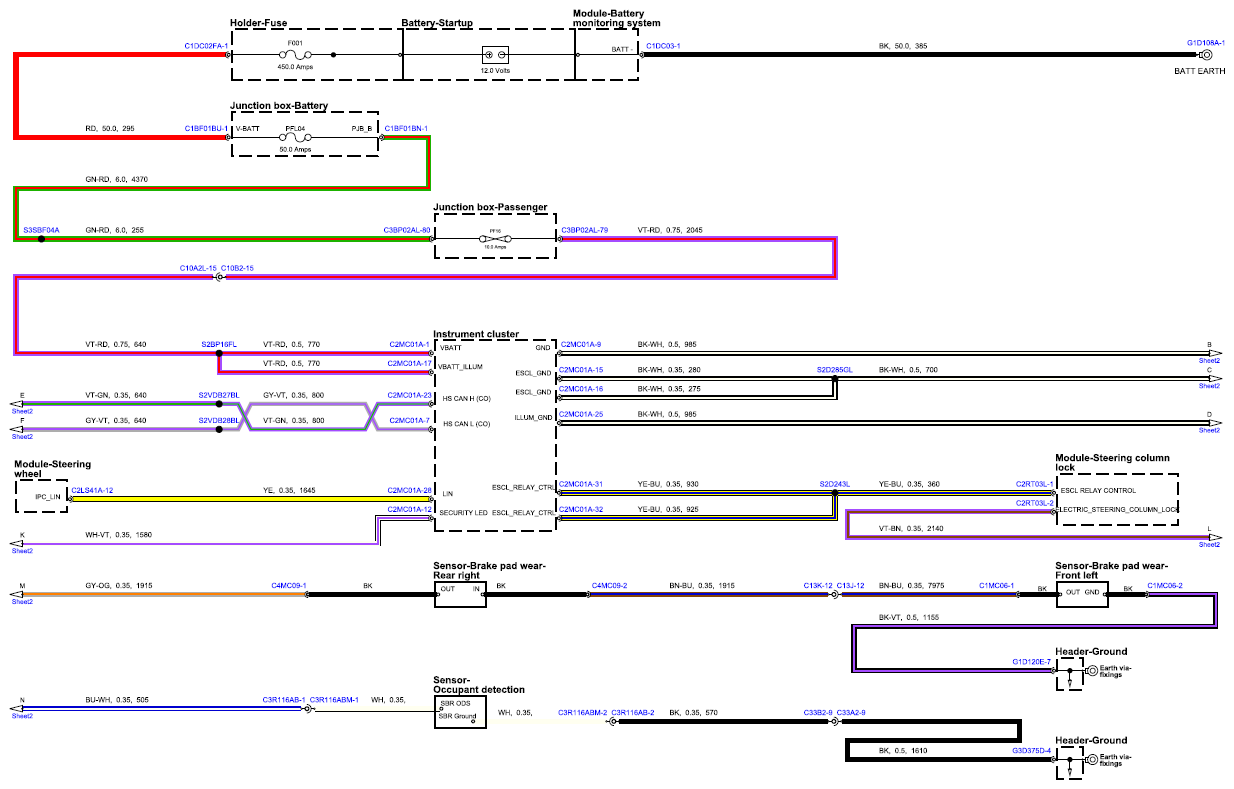

Fig 2: Information And Message Center Circuit Diagram - Head-Up Display (Sheet 2)
G15680579Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

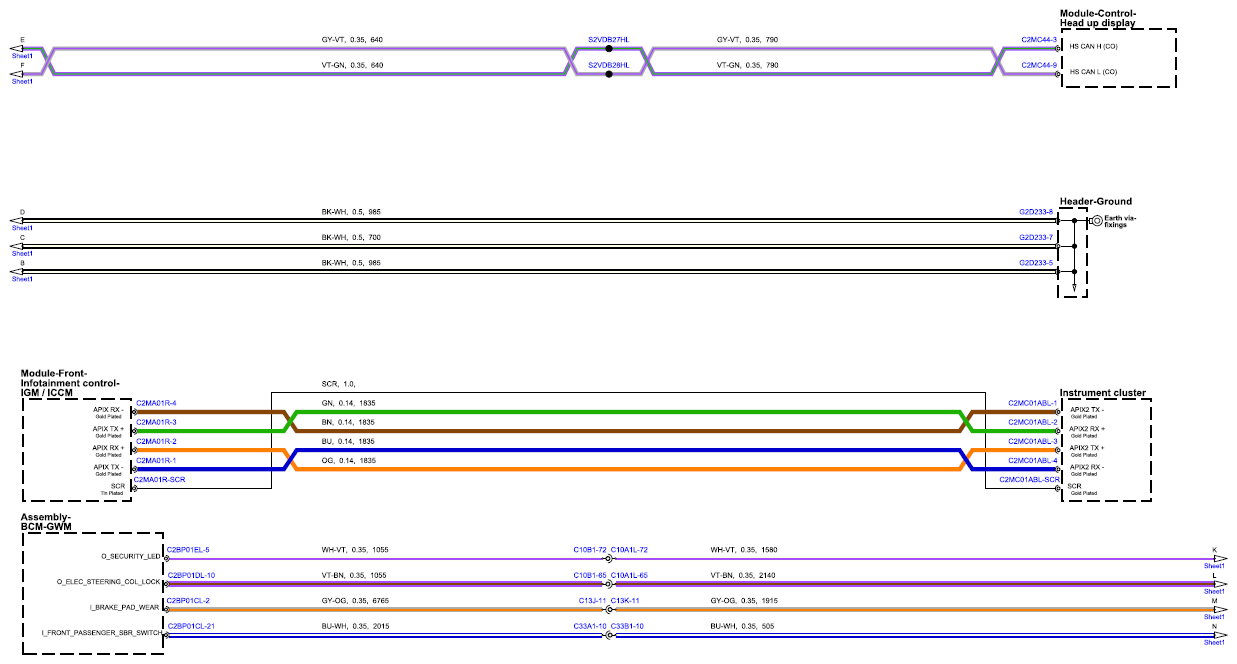

Fig 3: Information And Message Center Circuit Diagram - Head-Up Display (Sheet 3)
G15680580Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
