413-06 Horn

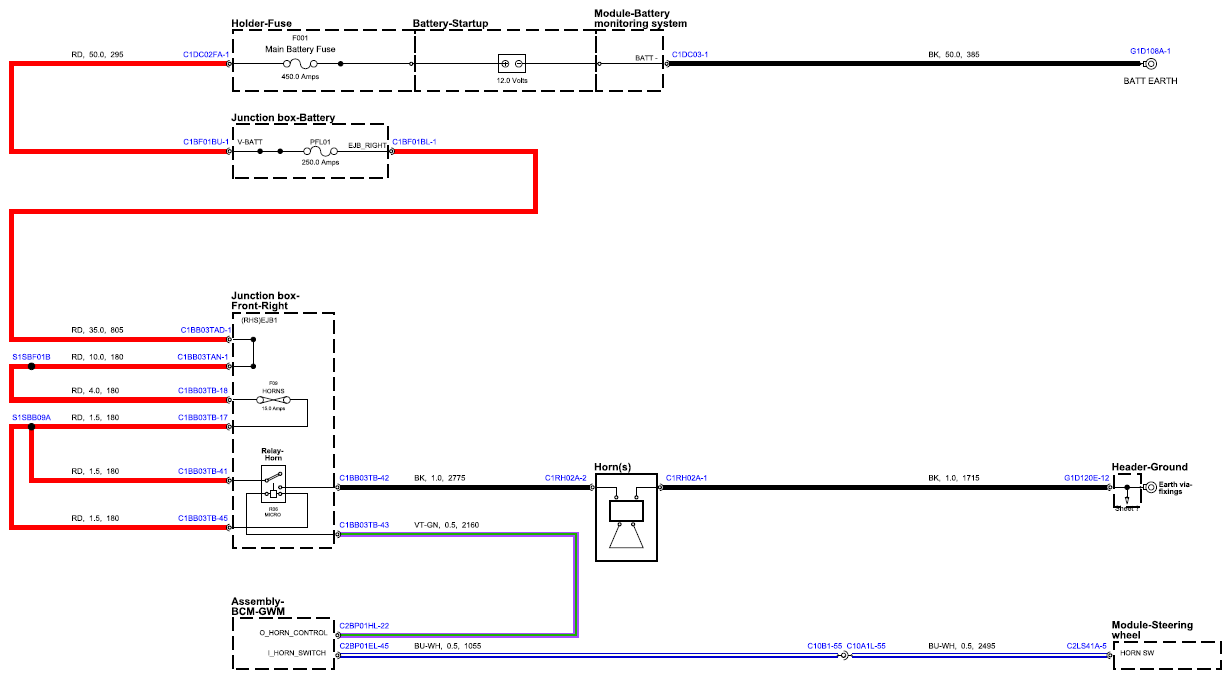

Fig 1: Horn Circuit Diagram

G15680577

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
