413-00 Instrument Cluster And Panel Illumination

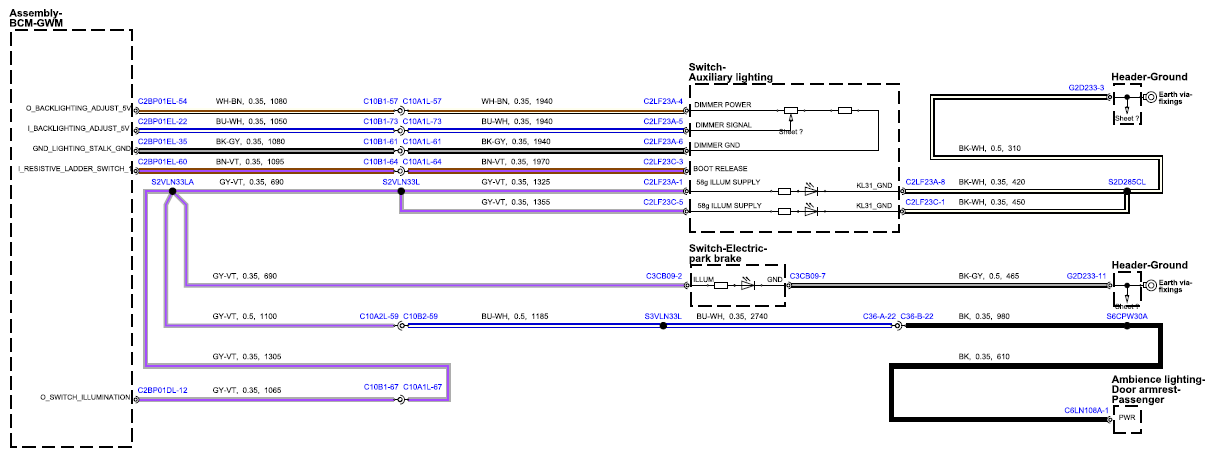

Fig 1: Instrument Cluster And Panel Illumination Circuit Diagram

G15680576

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
