OEM Wiring Diagrams -- I-Pace X590
>>
412-02 Auxiliary Climate Control
>>
Heated windows
Heated windows

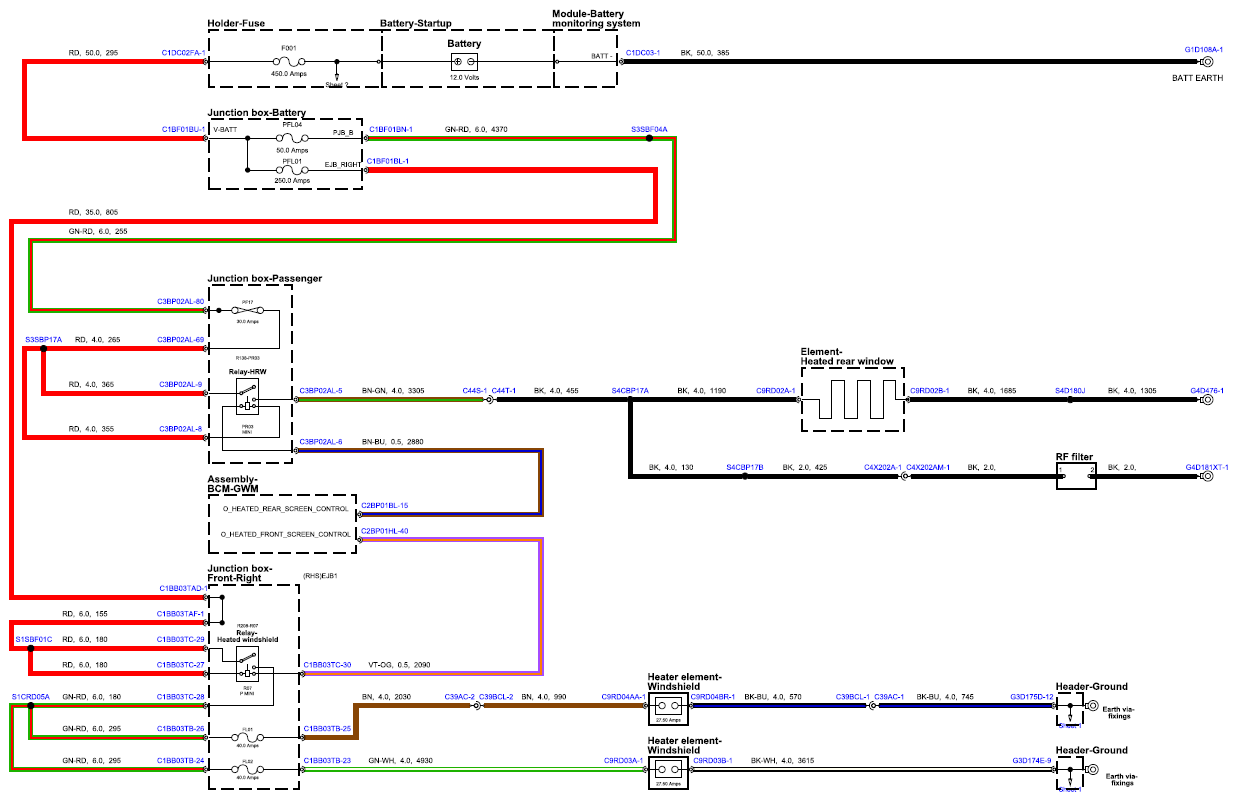

Fig 1: Auxiliary Climate Control Circuit Diagram - Heated Windows
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
