Clock spring

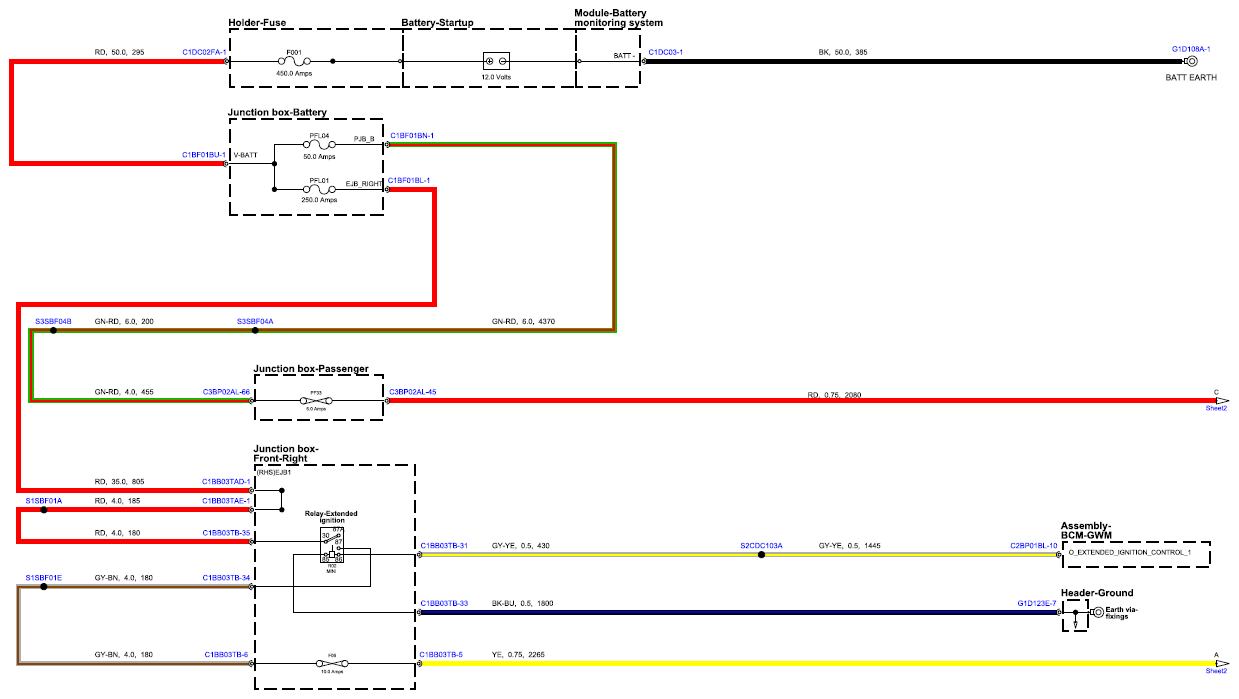

Fig 1: Clock Spring Circuit Diagram - Sheet 1

G15680557

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

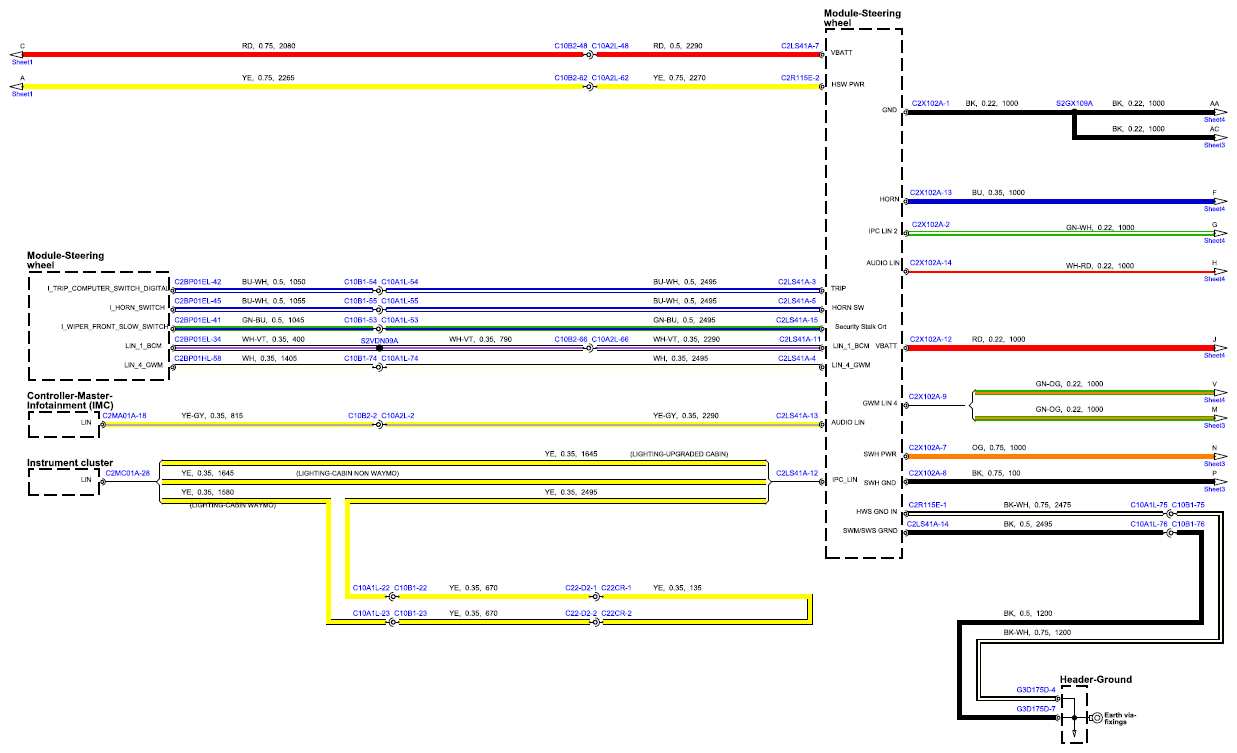

Fig 2: Clock Spring Circuit Diagram - Sheet 2

G15680558

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

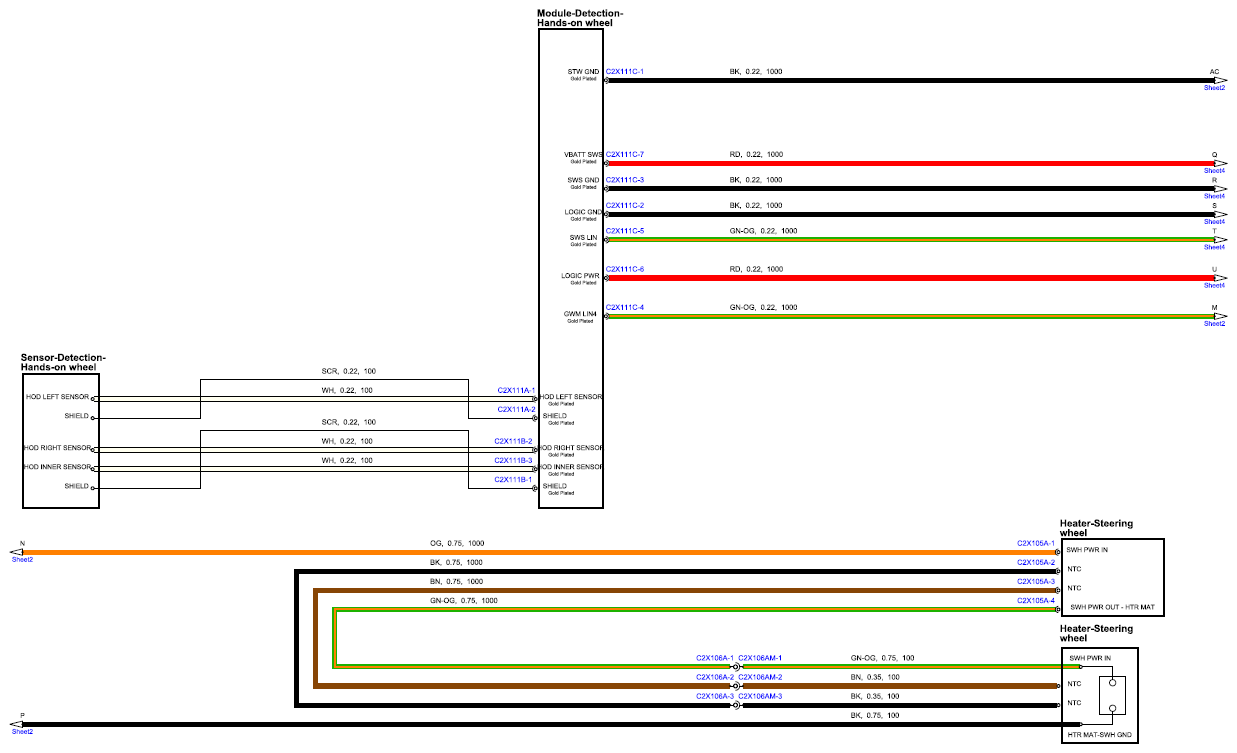

Fig 3: Clock Spring Circuit Diagram - Sheet 3

G15680559

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

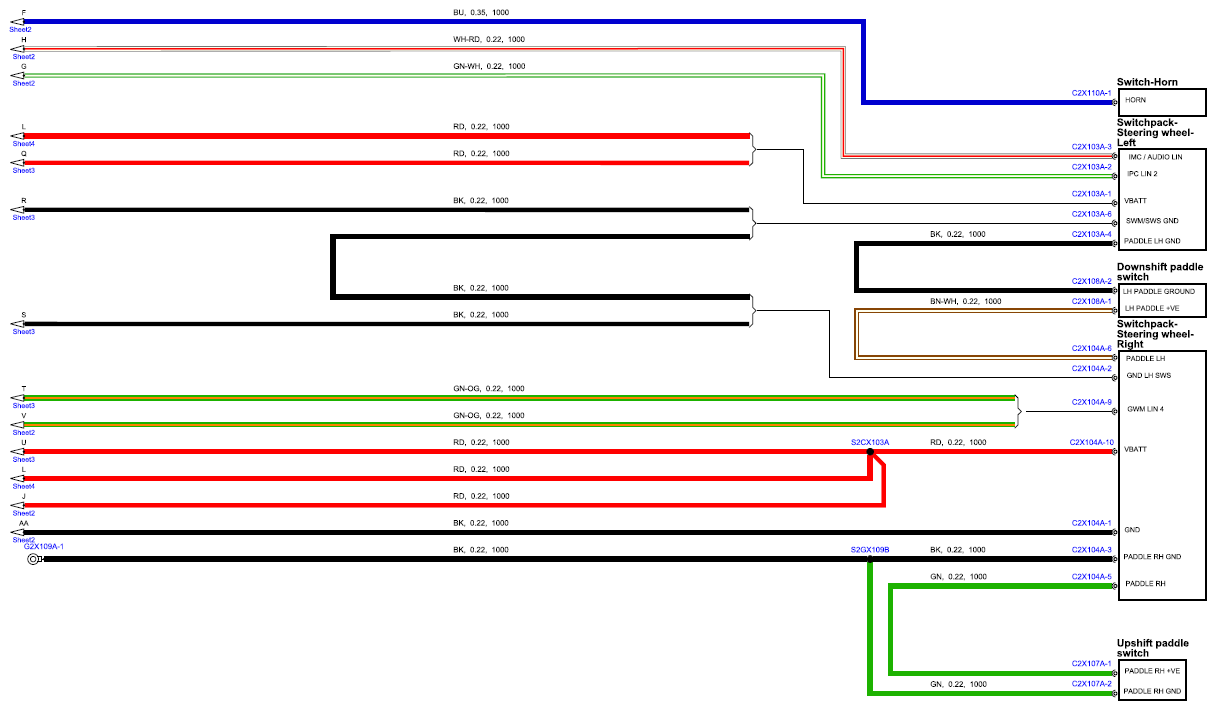

Fig 4: Clock Spring Circuit Diagram - Sheet 4

G15680560

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
