211-02 Power Steering

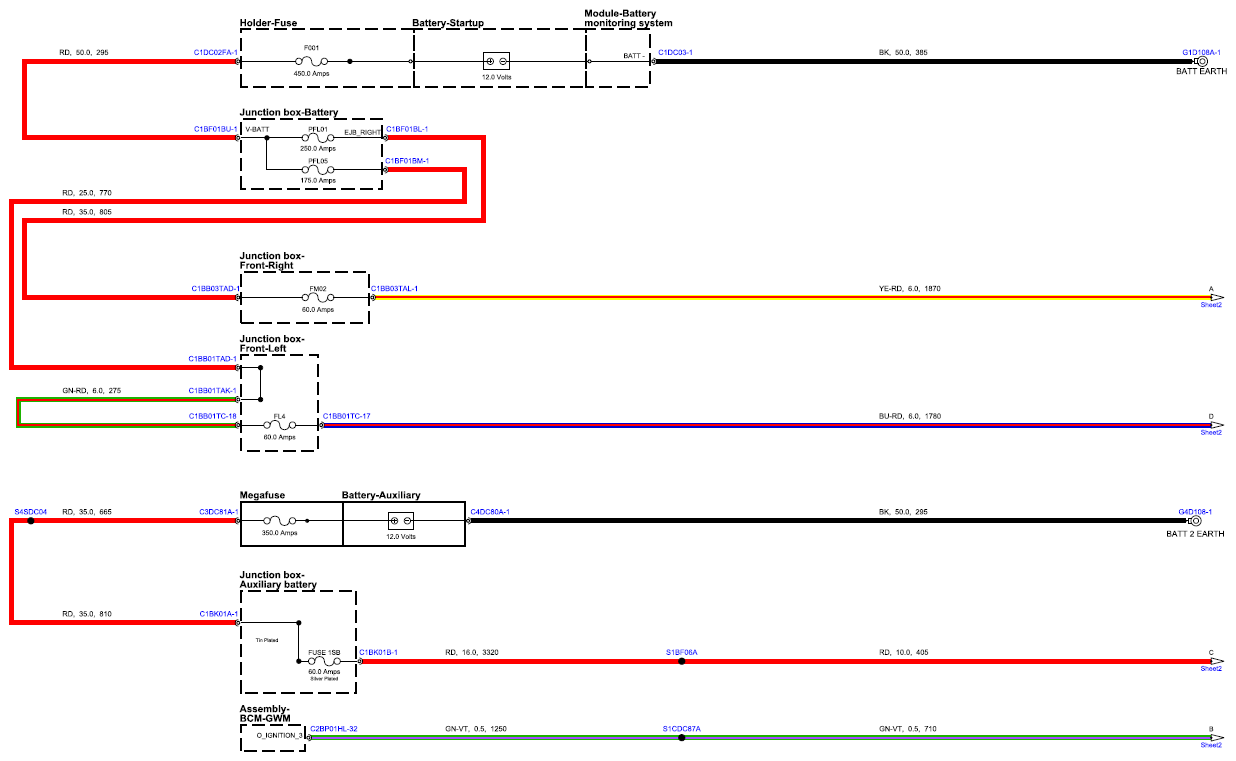

Fig 1: Power Steering Circuit Diagram - Sheet 1
G15680555Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

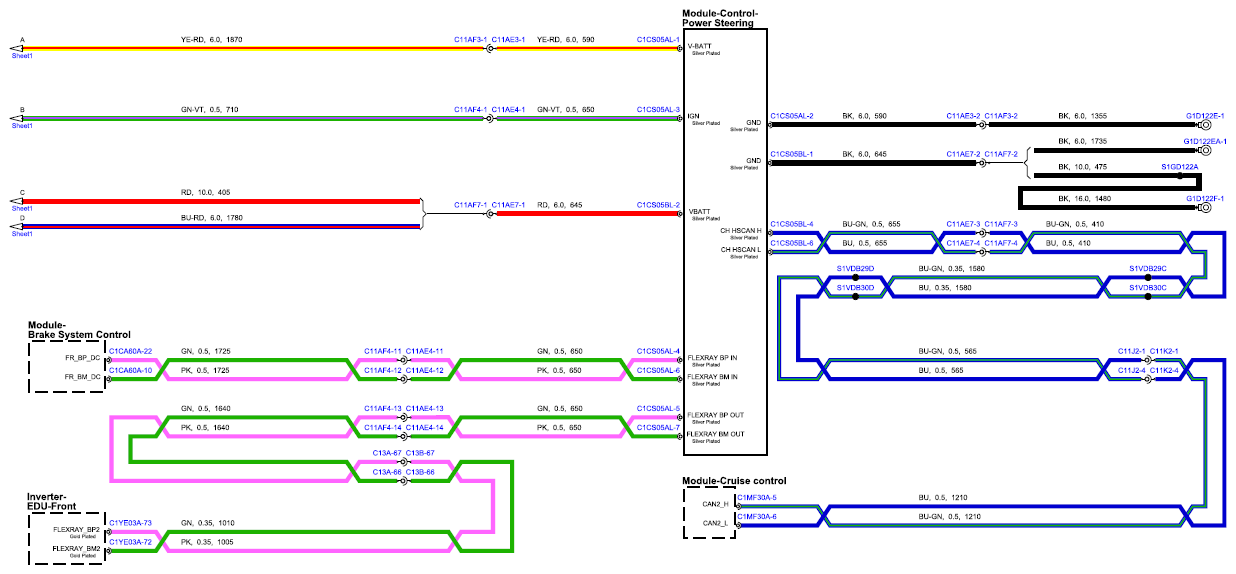

Fig 2: Power Steering Circuit Diagram - Sheet 2
G15680556Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
