Jaguar
>>
2021
>>
I-Pace S
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- I-Pace X590
>>
206-05 Parking Brake And Actuation
206-05 Parking Brake And Actuation

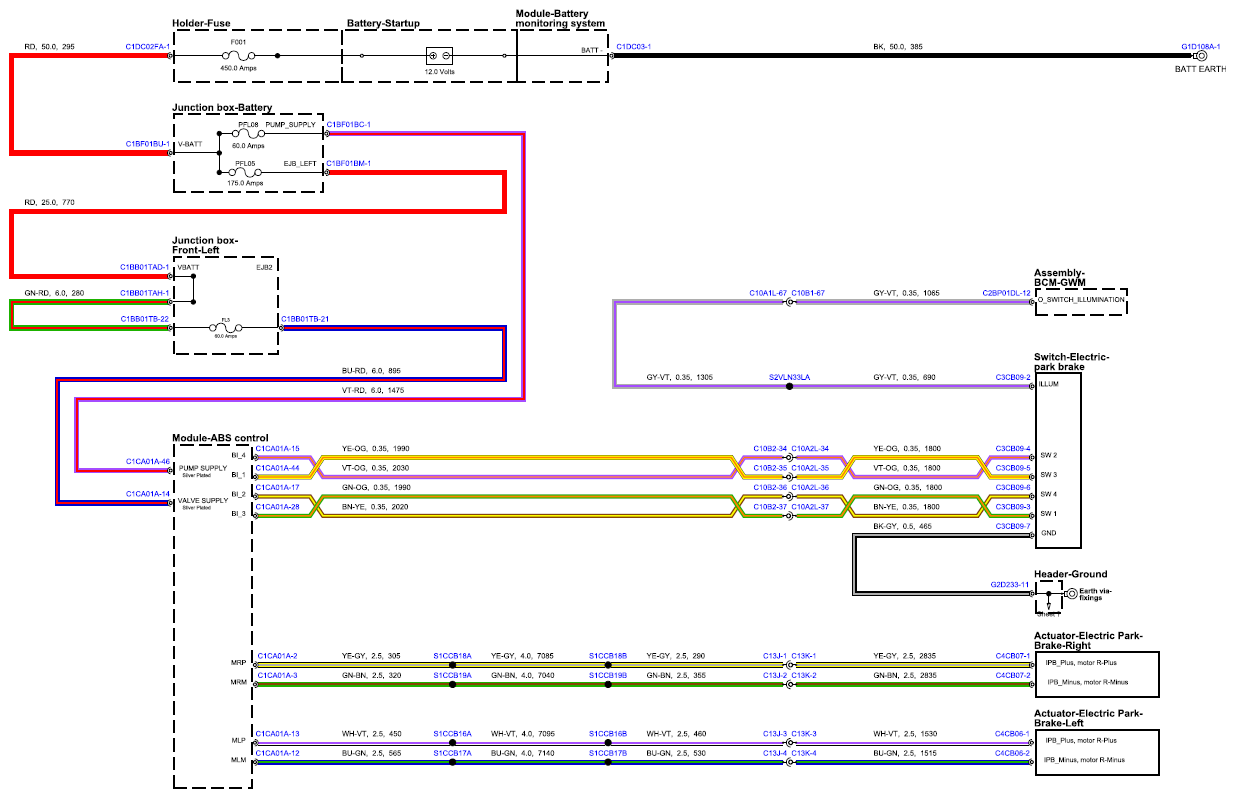

Fig 1: Parking Brake And Actuation Circuit Diagram
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
