OEM Wiring Diagrams -- I-Pace X590
>>
204-05 Vehicle Dynamic Suspension
204-05 Vehicle Dynamic Suspension

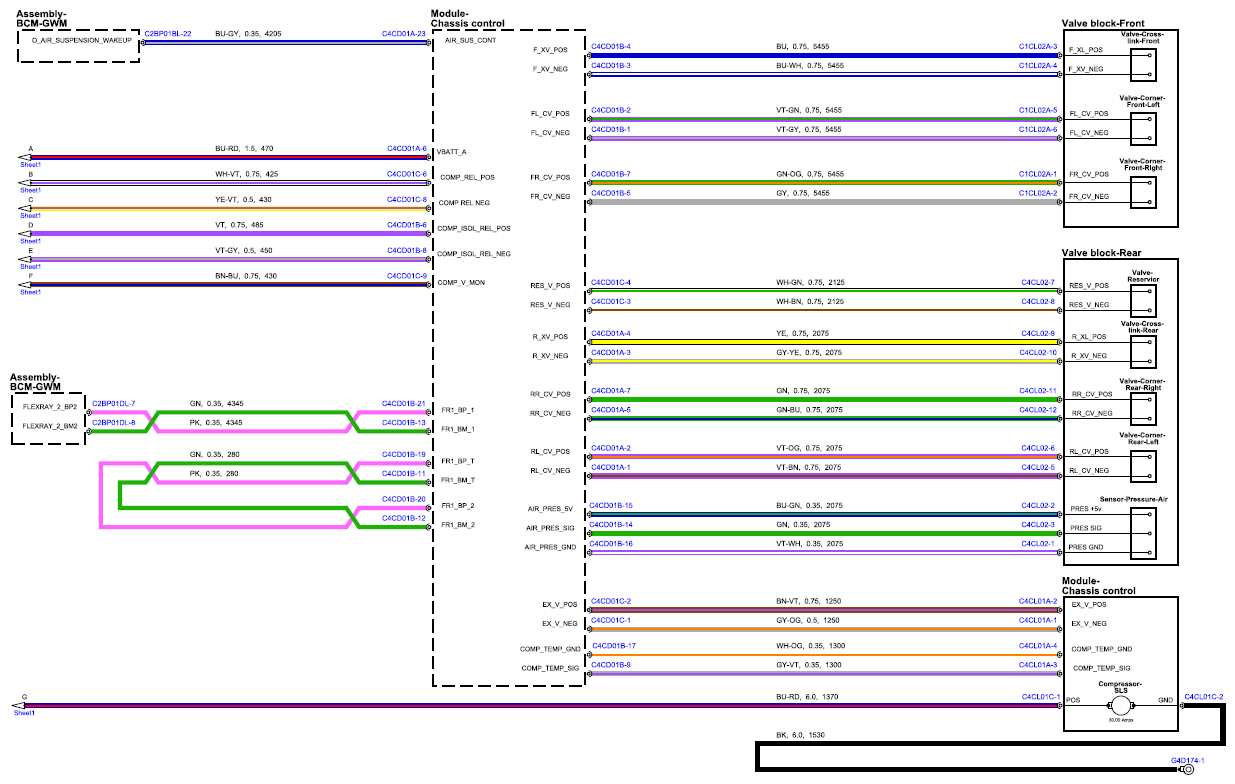

Fig 1: Vehicle Dynamic Suspension Circuit Diagram - Sheet 1
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

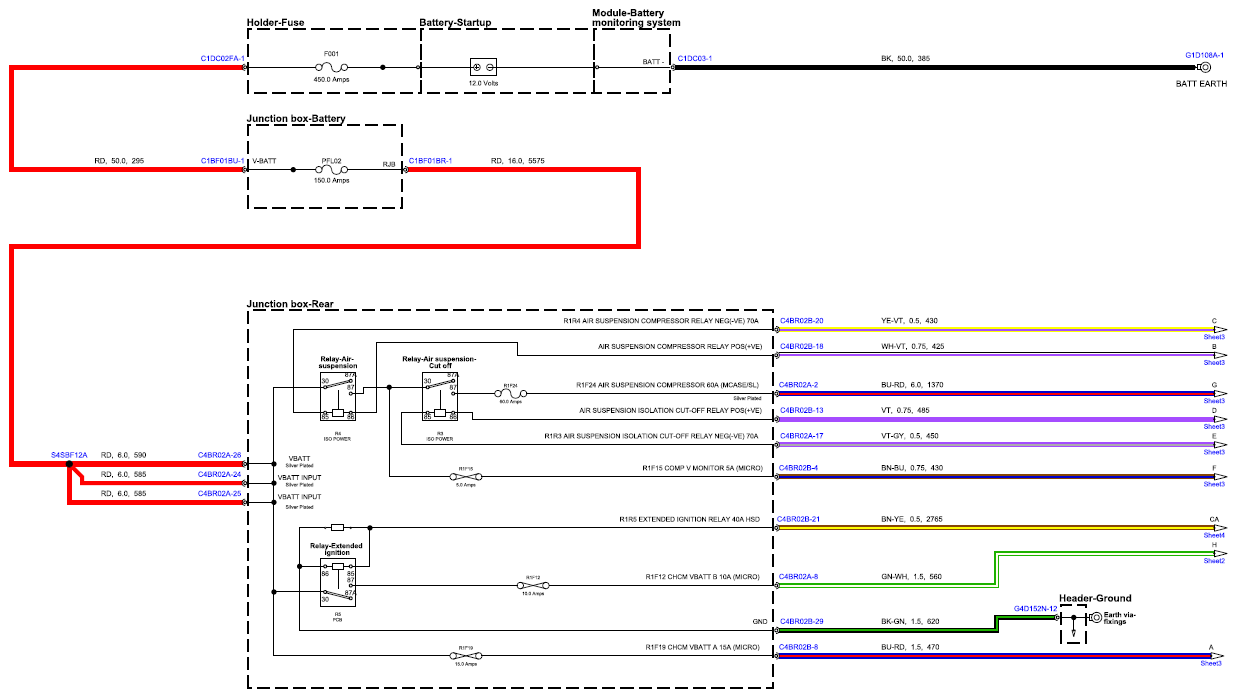

Fig 2: Vehicle Dynamic Suspension Circuit Diagram - Sheet 2
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

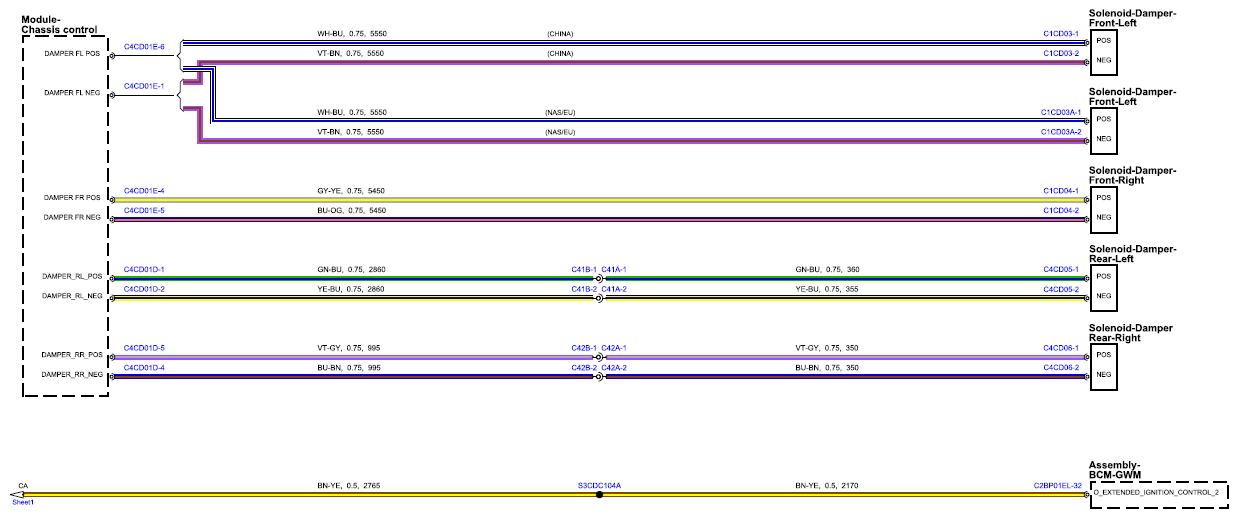

Fig 3: Vehicle Dynamic Suspension Circuit Diagram - Sheet 3
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

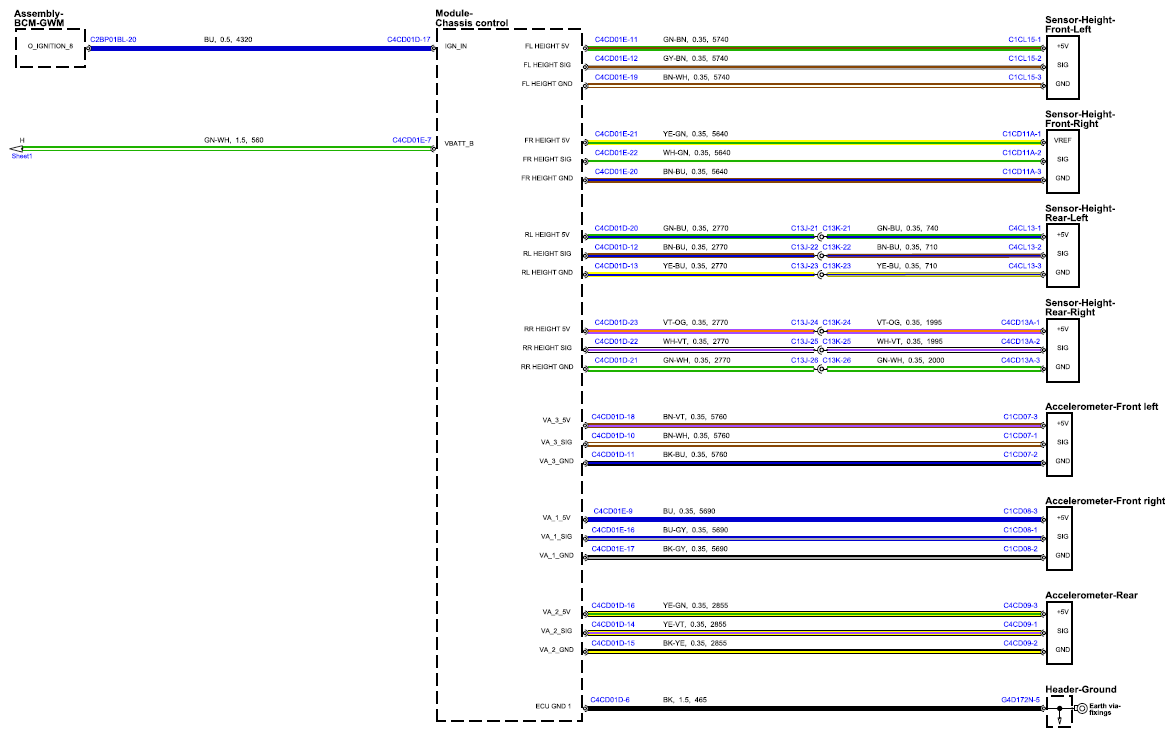

Fig 4: Vehicle Dynamic Suspension Circuit Diagram - Sheet 4
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
