Component Torque Location

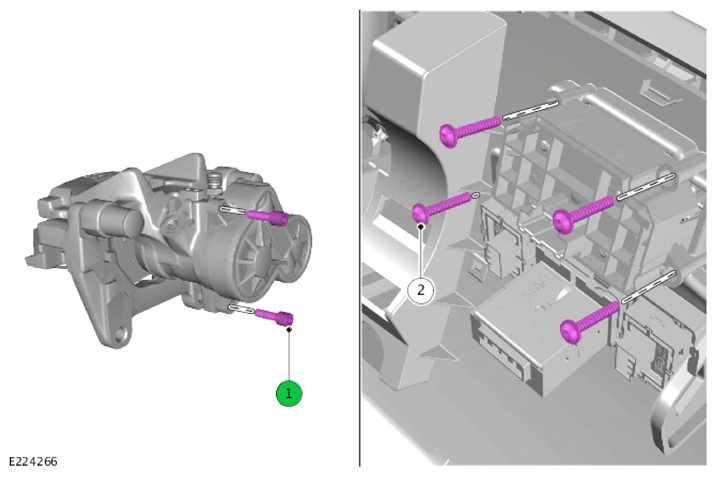

G13920771Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATION

  DESCRIPTION NM LB-FT LB-IN
1 Electric Park Brake (EPB) actuator bolts 8 - 70.8
2 Electric Park Brake (EPB) switch screws 1.5 - 13.2
