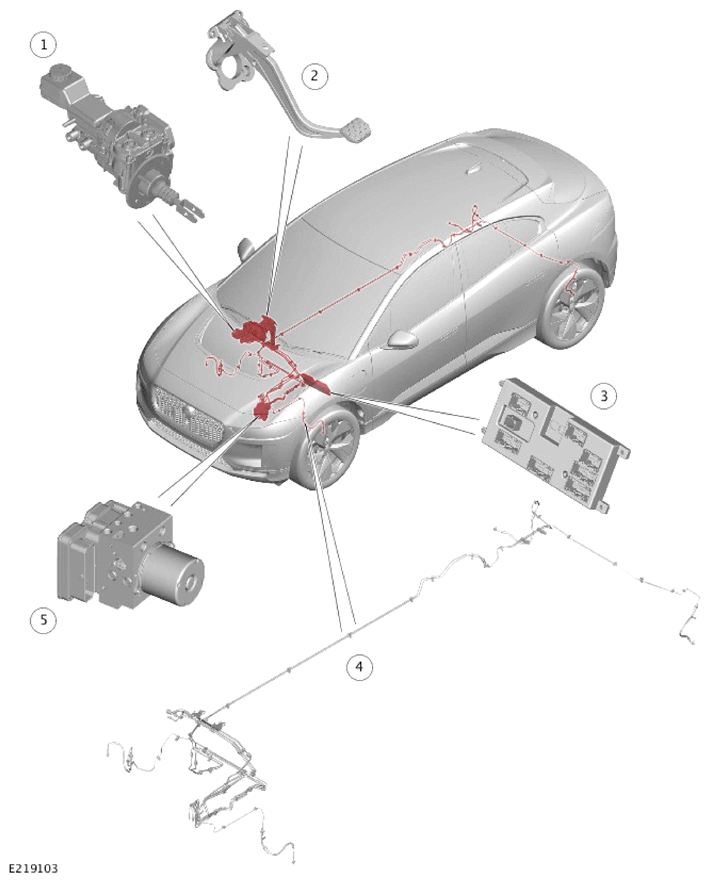

Component Location
NOTE:
Right Hand Drive (RHD) variant shown, Left Hand Drive (LHD) variant is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Brake Booster Module (BBM), brake master cylinder and brake fluid reservoir |
| 2 | Brake pedal |
| 3 | Body Control Module/Gateway Module (BCM/GWM) |
| 4 | Brake pipes and hoses |
| 5 | Anti-Lock Brake System (ABS) control module |
