Instrument Panel And Console (G2152327): Specifications
Specifications
COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|

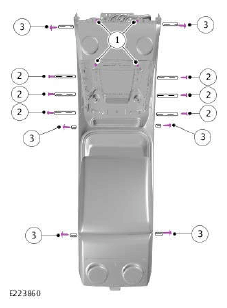

| 1 | Integrated Control Panel (ICP) bolts | 4 | - | 35.4 |
| 2 | Floor console moulding screws | 2.5 | - | 22.1 |
| 3 | Floor console retaining bolts | 8 | - | 70.8 |

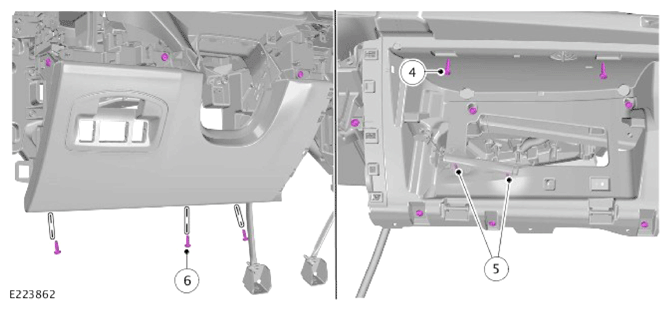

| 4 | Instrument panel lower trim panel bolts | 4 | - | 35.4 |
| 5 | Glove box retaining bolts | 2.2 | - | 19.47 |
| 6 | Glove box lid damper screws | 1.9 | - | 18.81 |

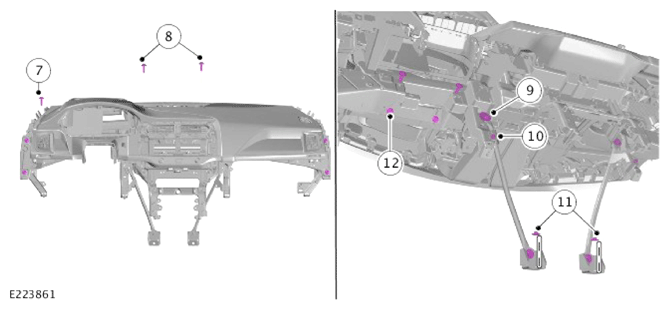

| 7 | Instrument panel retaining bolts | 25 | 18.44 | - |
| 8 | Instrument panel upper retaining bolts | 24 | 17.7 | - |
| 9 | Center support tube bolts | 25 | 18.44 | - |
| 10 | Center support tube screws | 5 | - | 44.25 |
| 11 | Instrument panel bracket retaining nuts | 25 | 18.44 | - |
| 12 | Instrument panel to steering column bolts | 25 | 18.44 | - |
