Rear Overhead Console (G2202015): Removal

CAUTION: Protect the surrounding components.
NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. CAUTION: Use a suitable trim tool.

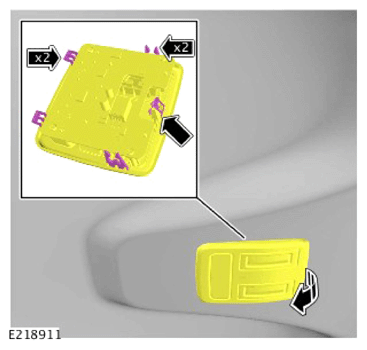

    G13925565Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Carefully release the clips.
    • Release the rear overhead console.

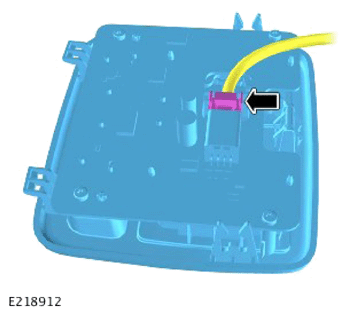

  2. G13925566Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Remove the rear overhead console.
