Instrument Panel Lower Trim Panel (G2217803]: Removal

NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Remove the driver side face vent.

    Refer to: DRIVER SIDE VENT .

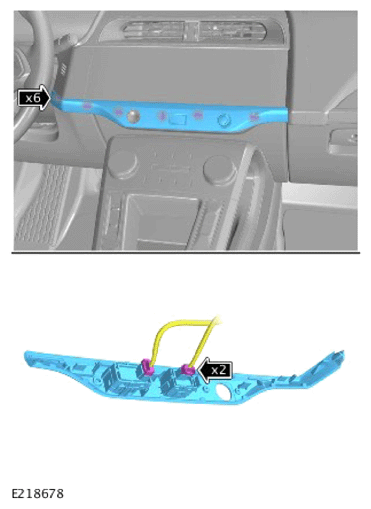

  2. G13925568Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Carefully release the 6 clips.
    • Disconnect the 2 electrical connectors.
    • Remove the center console trim panel.

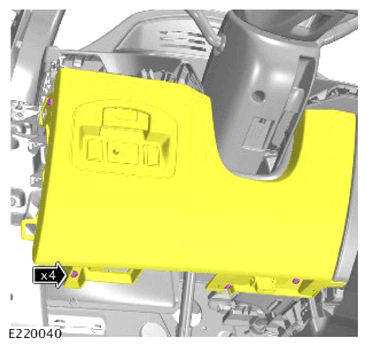

  3. G13925569Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 4 screws.

  4. CAUTION: Make sure to support the component while removing the retaining screws. Failure to follow this instruction may result in damage to the component.

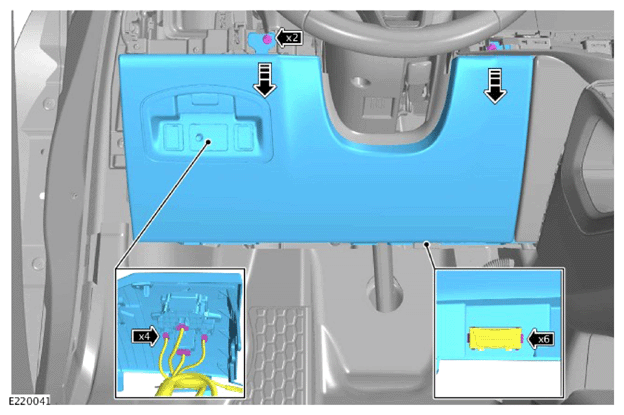

    G13925570Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 screws.
    • Disconnect the 4 electrical connectors.
    • Release the diagnostic connector.
    • Remove the instrument panel lower trim panel.
  5. NOTE: Only do the following step(s) if a new component is to be installed.

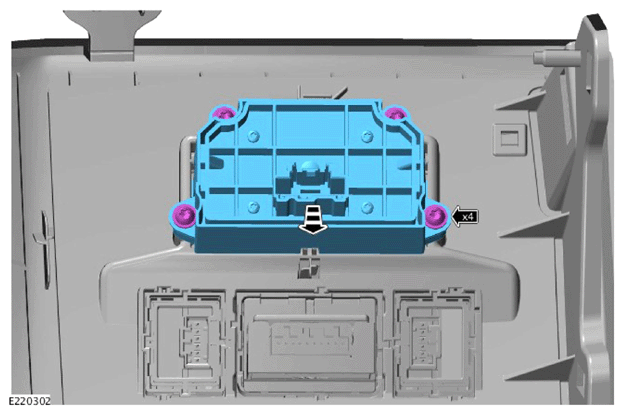

    G13925571Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 screws.
    • Remove the Electric Park Brake (EPB) switch.
