Ignition Switch (G2219037): Removal
CAUTION:
Make sure that excessive force is not used. Failure to follow this instruction may result in damage to the vehicle.
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
- Remove the Touchscreen.
Refer to: TOUCHSCREEN .
-
NOTE: Note the correct orientation of the component.

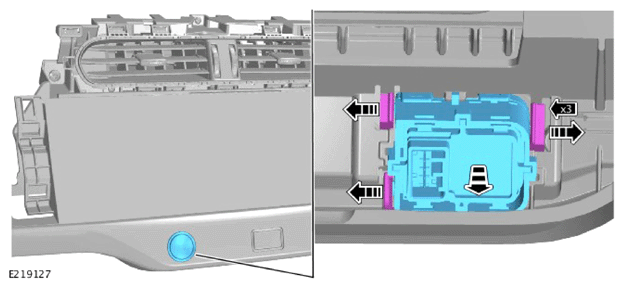

- Using a suitable tool, carefully release the 3 clips.
- Remove the ignition switch.
