Front Overhead Console (G2202012): Removal

CAUTION: Protect the surrounding trim to avoid damage.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

CAUTION: Use a suitable trim tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

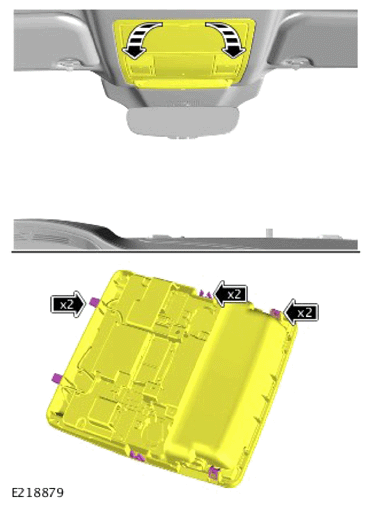

- Carefully release the clips.
- Release the front overhead console.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

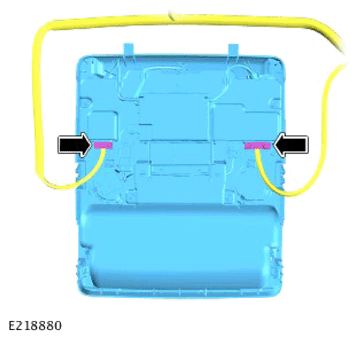

- Disconnect the 2 electrical connectors.
- Remove the front overhead console.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- NOTE: Only do the following step(s) if the component was previously removed.

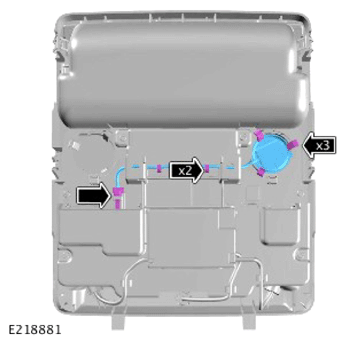

  Disconnect the electrical connector.
- Release the wiring harness.
- Release the 3 clips.
- Remove the microphone.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

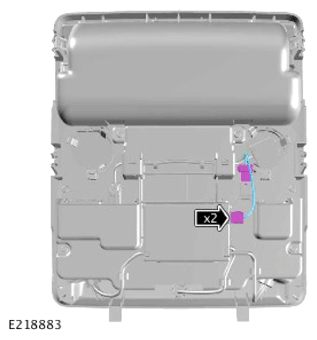

- Disconnect the 2 electrical connectors.
- Remove the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

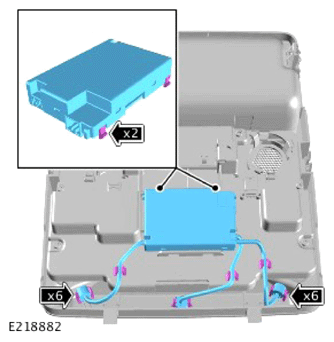

- Release the 3 motion sensors.
- Remove the 3 motion sensors.
- Release the 3 wiring harnesses.
- Remove the motion sensor module.
