Center Vent Trim Panel (G2218440): Removal

NOTE:
  • This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. CAUTION:
    • Do not use excessive force to release the component.
    • Use a suitable plastic trim tool to release the component.

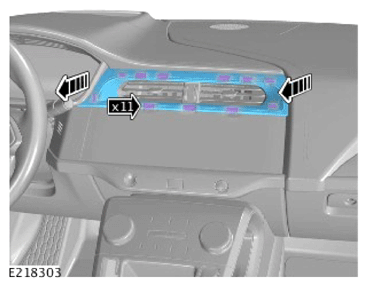

    G13925586Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the trim panel starting from the passenger side top corner towards the driver side bottom corner.
    • Remove the trim panel.
