Wheel Bearing (G2225402): Removal

NOTE:

This procedure contains illustrations for right side components, left side components are similar.
Some variation in the illustrations may occur, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the rear wheel knuckle.
Refer to: WHEEL KNUCKLE - VEHICLES WITH: COIL SUSPENSION .

Refer to: WHEEL KNUCKLE - VEHICLES WITH: AIR SUSPENSION .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tools JLR-201-726 and JLR-204-836 remove the wheel hub.

Special Tool(s) : JLR-204-726, JLR-204-836

General Equipment : Hydraulic press
CAUTION:
- Take care not to damage the wheel hub during the release of the bearing inner race.
- Use a suitable tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

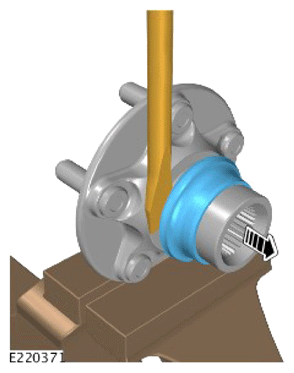

Release the wheel bearing inner race.

General Equipment : Chisel
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

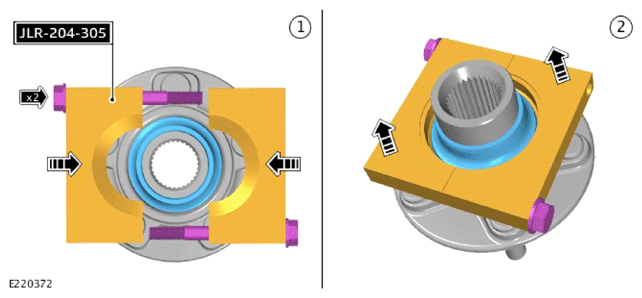

Using the special tool JLR-204-305 remove the wheel bearing inner race.

Special Tool(s) : 204-305

General Equipment : Hydraulic press
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

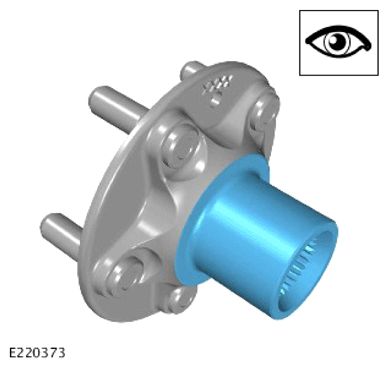

Inspect the wheel hub for damage or deterioration.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the circlip.
CAUTION: Note the orientation of the rear wheel bearing prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tool JLR-204-726 remove the wheel bearing.

Special Tool(s) : JLR-204-726

General Equipment : Hydraulic press
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Clean and inspect the wheel knuckle for damage or deterioration.
