Tie Rod (G2248516): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

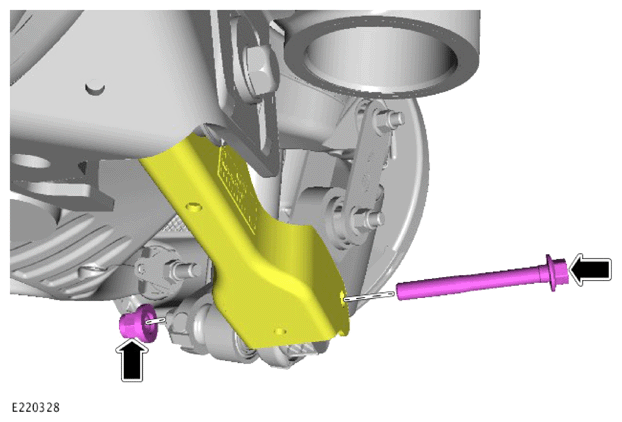

Disconnect the tie-rod from the wheel knuckle and discard the nut and bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

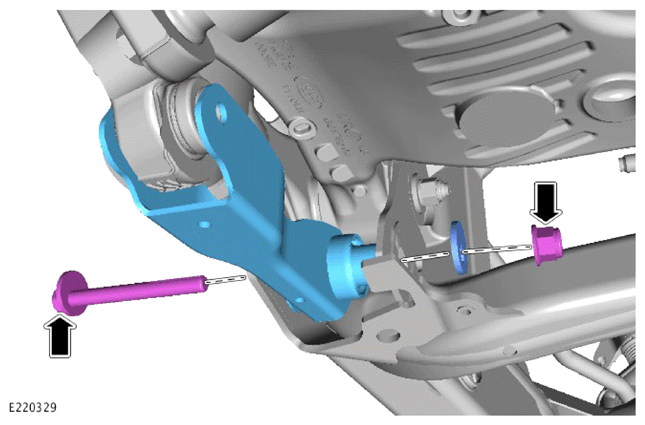

Remove the tie-rod from the subframe and discard the nut.
