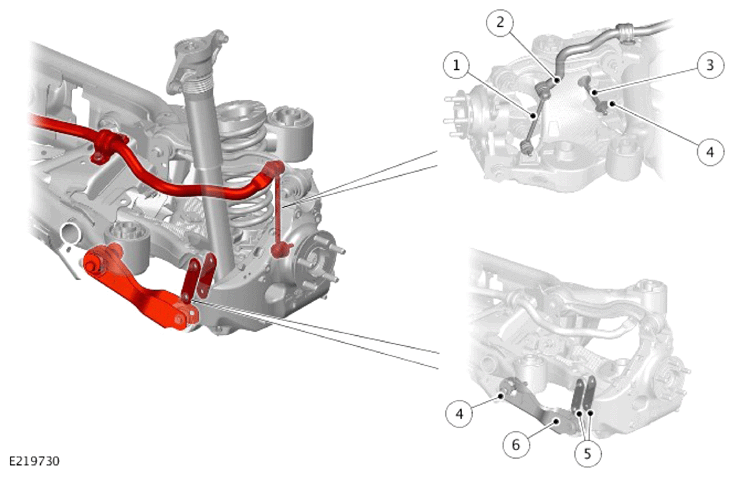

Tie-Rod And Stabilizer Bar
| ITEM | DESCRIPTION |
|---|---|
| 1 | Stabilizer bar link |
| 2 | Stabilizer bar |
| 3 | Eccentric bolt |
| 4 | Eccentric washer |
| 5 | Link - Lower control arm to wheel knuckle |
| 6 | Tie-rod |
The bush is secured with a special eccentric bolt, a washer and a nut. This allows for the adjustment of the rear toe. The rotation of the bolt moves the eccentric head within a recessed slot in the bracket, allowing the toe to be adjusted within the set limits.
