Component Torque Location
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|

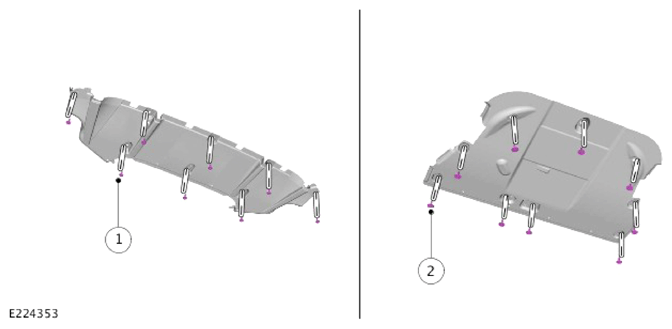

| 1 | Rear undershield bolts | 7 | - | 62 |
| 2 | Rear subframe undershield bolts | 7 | - | 62 |

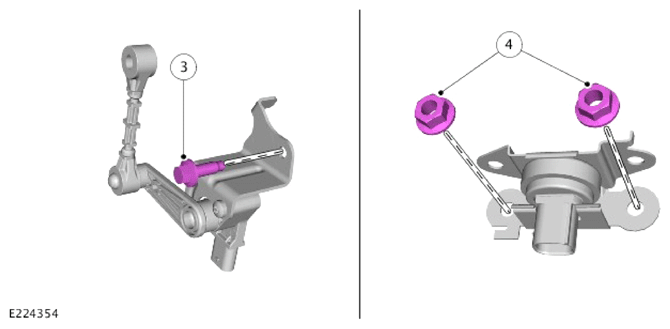

| 3 | Suspension height sensor bolt | 10 | 7 | - |
| 4 | Suspension vertical accelerometer nuts | 7 | - | 62 |

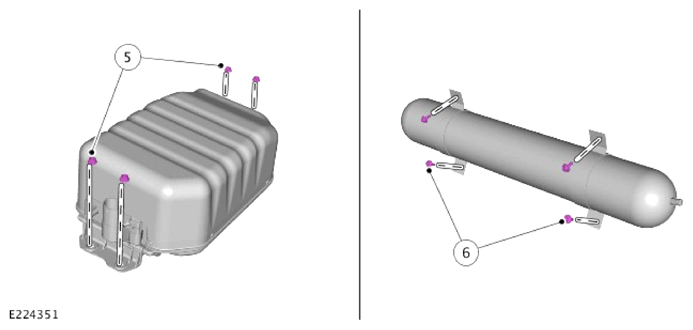

| 5 | Air suspension compressor nuts | 10 | 7 | - |
| 6 | Air suspension reservoir bolts | 10 | 7 | - |

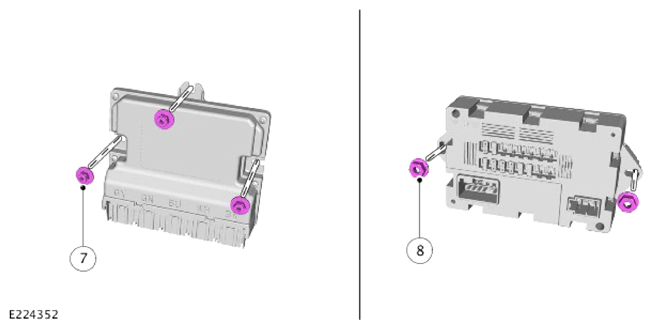

| 7 | Air suspension control module nuts | 7 | - | 62 |
| 8 | Quiescent Current Control Module (QCCM) nuts | 7 | - | 62 |
