Rear Suspension Vertical Accelerometer (G2214450): Removal
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
- Remove the rear left wheel arch liner.
Refer to: REAR WHEEL ARCH LINER .

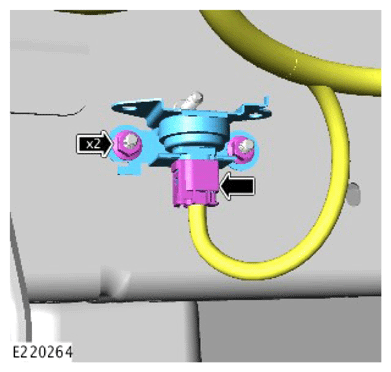

- Disconnect the electrical connector.
- Remove the accelerometer.
