Rear Air Spring (G2219849): Removal

WARNING: Residual air pressure may be present in the system. Take care when releasing Airline connectors.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material.
When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for right side components, left side components are similar.

Using Jaguar Land Rover approved diagnostic equipment, depressurize the air suspension system. Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE .
General Equipment : Jaguar Land Rover approved diagnostic equipment
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the rear wheel arch liner.
Refer to: REAR WHEEL ARCH LINER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

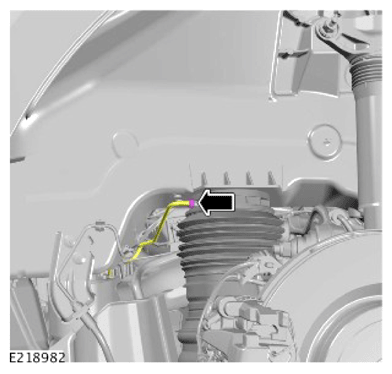

Disconnect the Airline connector.
NOTE: Note the position of the air spring before removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

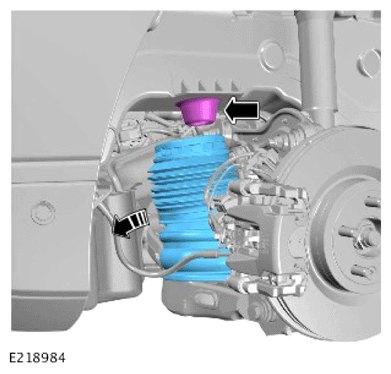

Remove the rear air spring.
