Rear Air Spring (G2219849): Installation
-

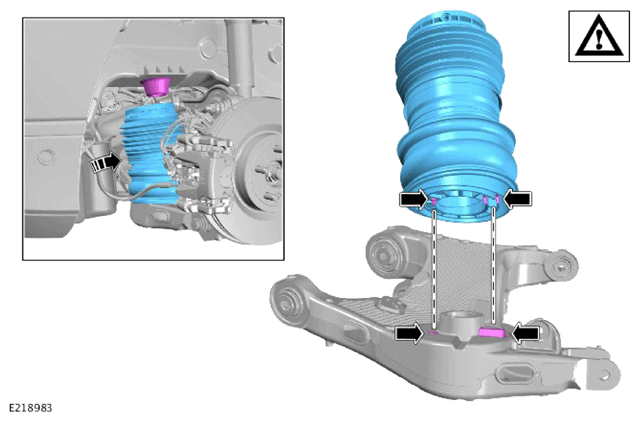

CAUTION: Make sure that the air spring is correctly located on the locating pegs.
Install the rear air spring.
-
CAUTION: Do not reuse the Airline connector. Always install a new Airline connector every time it is released.
Connect the Airline connector.
Refer to: AIRLINE CONNECTOR - (+) AIR SUSPENSION .
Renew Part: Airline connector(s) Quantity: 1 .
- Connect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
-
CAUTION: Do not lower the vehicle to the floor. This step must be done without the vehicle's weight on the wheels.
Using Jaguar Land Rover approved diagnostic equipment, partially pressurize the air suspension system.
Refer to: AIR SUSPENSION - MANUAL CONTROL PROCEDURE - (+) AIR SUSPENSION .
General Equipment : Jaguar Land Rover approved diagnostic equipment
- Install the rear wheel arch liner.
Refer to: REAR WHEEL ARCH LINER .
- Using Jaguar Land Rover approved diagnostic equipment, fully pressurize the air suspension system.
Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE .
General Equipment : Jaguar Land Rover approved diagnostic equipment
