Front Suspension Vertical Accelerometer (G2214449): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
Right side shown, left side similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the front wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

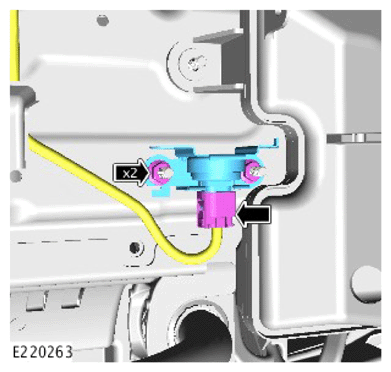

- Disconnect the electrical connector.
- Remove the accelerometer.
