Front Air Reservoir Valve Block (G2215088): Removal

WARNING: Residual air pressure may be present in the system. Take care when releasing Airline connectors.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material.
When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Using Jaguar Land Rover approved diagnostic equipment, depressurize the air suspension system. Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE .
General Equipment : Jaguar Land Rover approved diagnostic equipment
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the undershield.
Refer to: UNDERSHIELD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

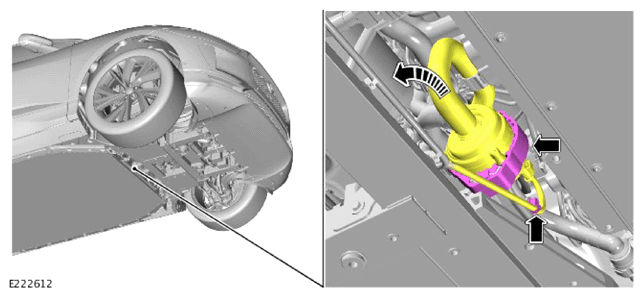

Move aside the electric coolant pump.
CAUTION: Do not reuse the Airline connectors. Always install a new Airline connector every time it is released.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

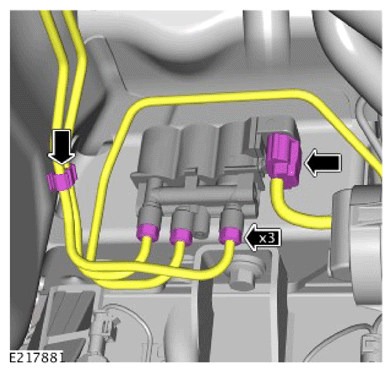

- Disconnect the 3 Airline connectors.
- Release the clip.
- Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

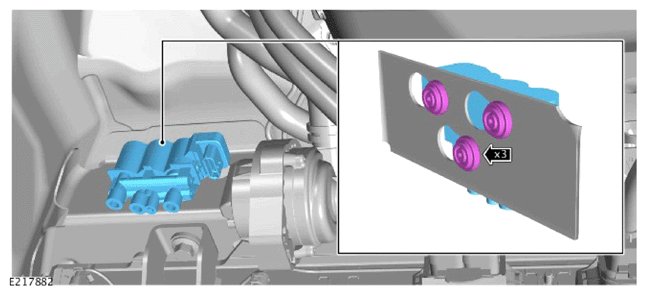

Remove the front air reservoir valve block.
