Air Suspension Control Module (G2207033): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Remove the right loadspace side trim.
Refer to: LOADSPACE SIDE TRIM PANEL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

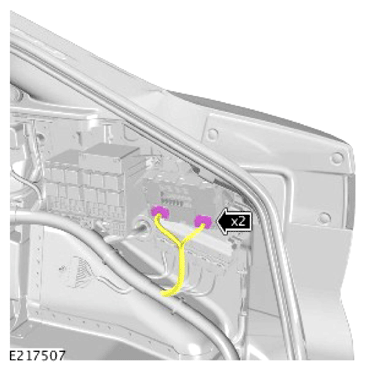

Disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

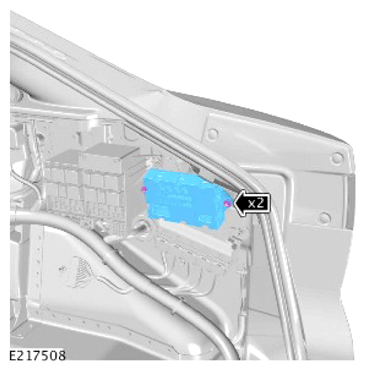

- Remove the 2 nuts.
- Remove the Quiescent Current Control Module (QCCM).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

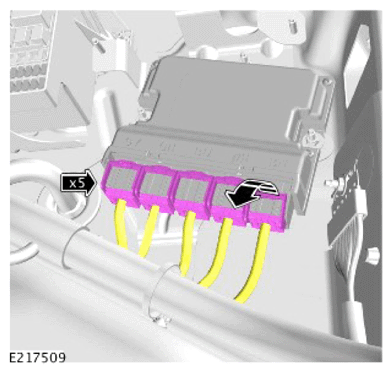

Disconnect the 5 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

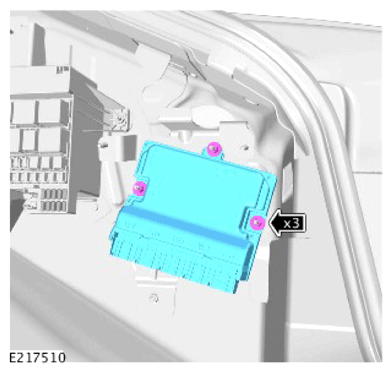

- Remove the 3 nuts.
- Remove the air suspension control module.
