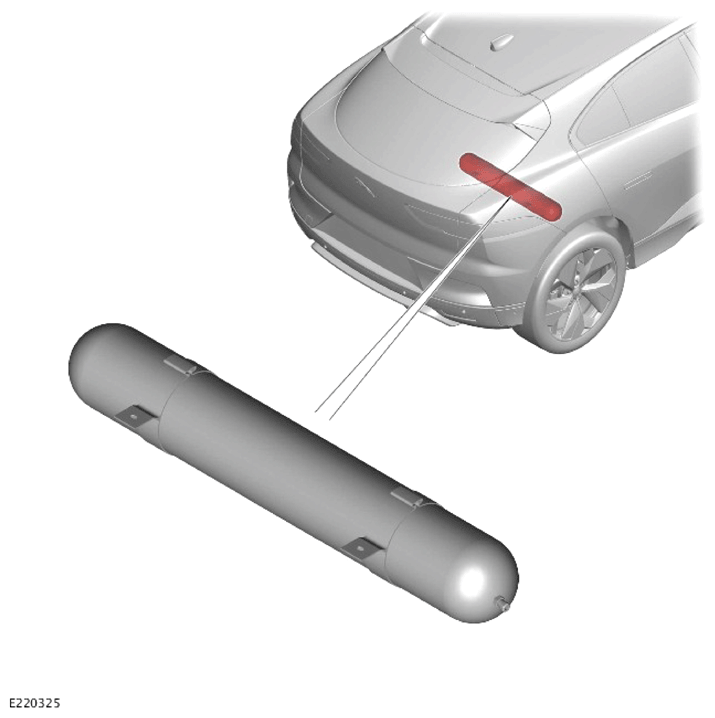

Air Reservoir
The air reservoir is an air storage vessel which provides fast air suspension lift times by the immediate availability of pressurized air into the system.
The Chassis Control Module (CHCM) assumes that the air reservoir has sufficient pressure, which is measured before a vehicle raise is started.
The end of the air reservoir has an air fitting which provides for the connection of the air pipe between the reservoir and the rear valve block.
The reservoir has a capacity of 8 liters. The nominal working pressure of the air reservoir is 17.5 bar (253.8 psi) gauge pressure.
