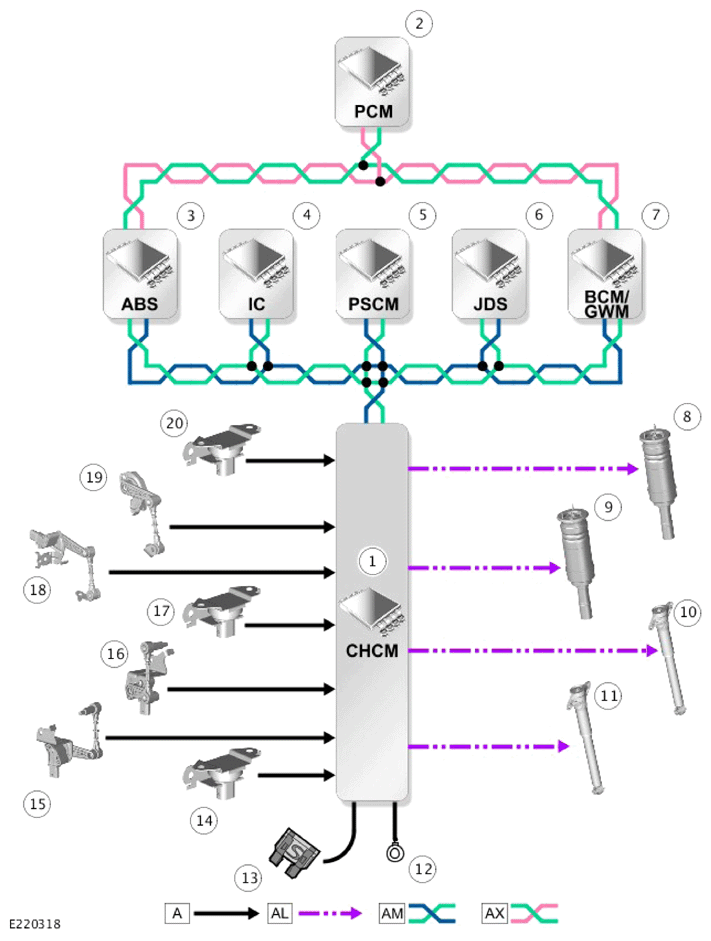

Control Diagram - Adaptive Damping
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM): AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AX = FLEXRAY BUS .
| ITEM | DESCRIPTION |
|---|---|
| 1 | Chassis Control Module (CHCM) |
| 2 | Powertrain Control Module (PCM) |
| 3 | Anti-Lock Brake System (ABS) control module |
| 4 | Instrument Cluster (IC) |
| 5 | Power Steering Control Module (PSCM) |
| 6 | Jaguar Drive Switchpack (JDS) |
| 7 | Body Control Module/Gateway Module(BCM/GWM) |
| 8 | Front right adaptive shock absorber and spring assembly |
| 9 | Front left adaptive shock absorber and spring assembly |
| 10 | Rear right adaptive shock absorber |
| 11 | Rear left adaptive shock absorber |
| 12 | Ground |
| 13 | Power supply |
| 14 | Front right accelerometer |
| 15 | Front right height sensor |
| 16 | Front left height sensor |
| 17 | Front left accelerometer |
| 18 | Rear right height sensor |
| 19 | Rear left height sensor |
| 20 | Rear accelerometer |
