Exterior Trim And Ornamentation (G2152323): Specifications

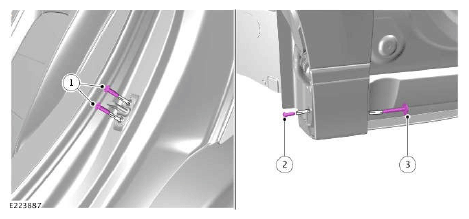

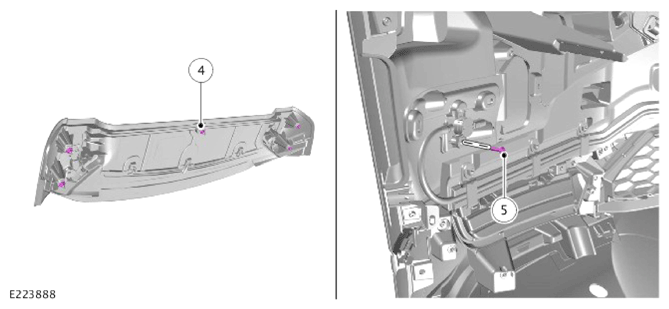

COMPONENT TORQUE LOCATION
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |
Door striker retaining bolts |
25 |
18 |
- |
| 2 |
Rocker panel front bolt |
4.1 |
3 |
36.2 |
| 3 |
Rocker panel rear bolt |
5 |
- |
44.2 |
| 4 |
Rear spoiler retaining nuts |
10 |
7.37 |
- |
| 5 |
Pedestrian protection system pressure sensor bolt |
5 |
- |
44.2 |
