Transfer Case Actuator (G1896055): Removal

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some illustrations may show the transfer case removed for clarity.

Connect the approved diagnostic equipment to obtain any fault code data (or) any diagnostic trouble codes (DTC's).
Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Drain the transfer case.
Refer to: TRANSFER CASE DRAINING AND FILLING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the heat shield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect and reposition the wiring harness.
Using a suitable stand, support the transmission.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cross member to transfer case retaining bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cross member
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the connector.
WARNING: Be prepared to collect escaping oil.

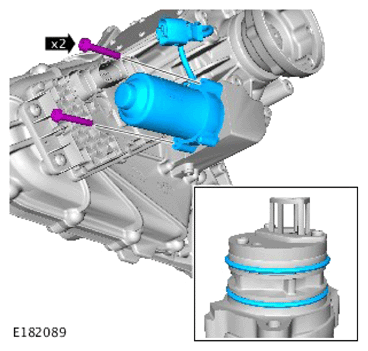

CAUTION: Inspect the o-ring seals and replace if damaged or worn.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the transfer case actuator.
