Transfer Case Fluid Level Check (G1908026): Check

NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: ENGINE UNDERSHIELD - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/V6 S/C 3.0L PETROL .

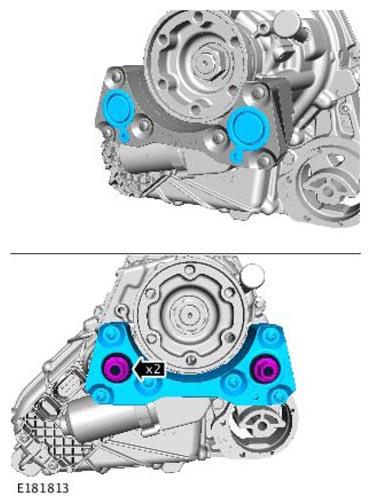

  3. G11314252Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

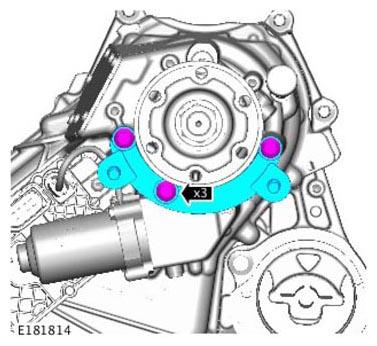

  4. G11314245Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    NOTE: Discard the sealing washer.
    G11314248Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    NOTE: Remove and discard the fill plug
    G11314247Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
