Transfer Case Fluid Level Check (G1908026): Adjustment

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.
Removal steps in this procedure may contain installation details.

Top-up the transfer case with recommended fluid, until the fluid is level with bottom of filler/level plug hole.
CAUTION: Make sure that a new sealing washer is installed.

NOTE: Make sure that all the component mating faces are clean.

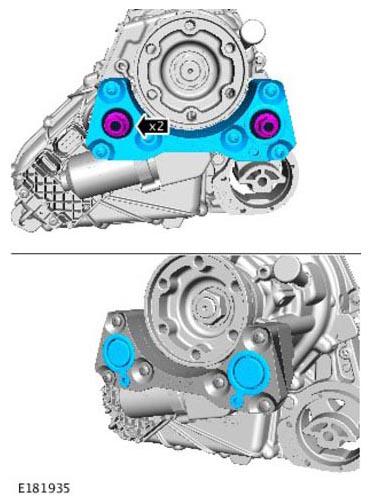

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 8 Nm
CAUTION: Make sure that the area around the component is clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Transfer case fill plug Quantity: 1.

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 45 Nm
Refer to: ENGINE UNDERSHIELD - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/V6 S/C 3.0L PETROL .
