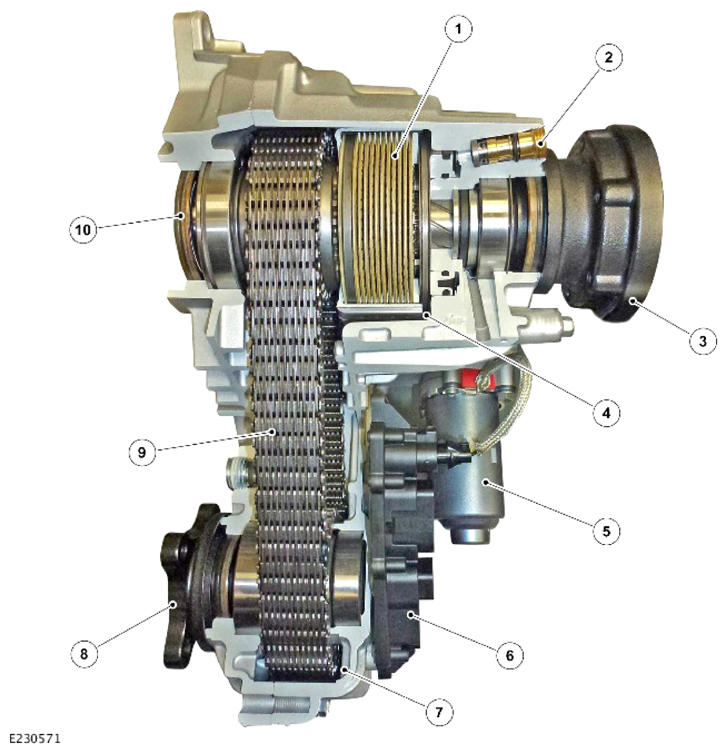

Transfer Case Internals
| ITEM | DESCRIPTION |
|---|---|
| 1 | Multiplate clutch, comprises an inner drive hub, a clutch basket and a set of drive/reaction plates and friction plates |
| 2 | Pressure Relief Valve (PRV) |
| 3 | Output flange rear driveshaft |
| 4 | Upper transmission fluid reservoir |
| 5 | Electric hydraulic pump |
| 6 | Transfer Case Control Module (TCCM) |
| 7 | Lower transmission fluid reservoir |
| 8 | Output flange front driveshaft |
| 9 | Drive chain |
| 10 | Transmission input |
