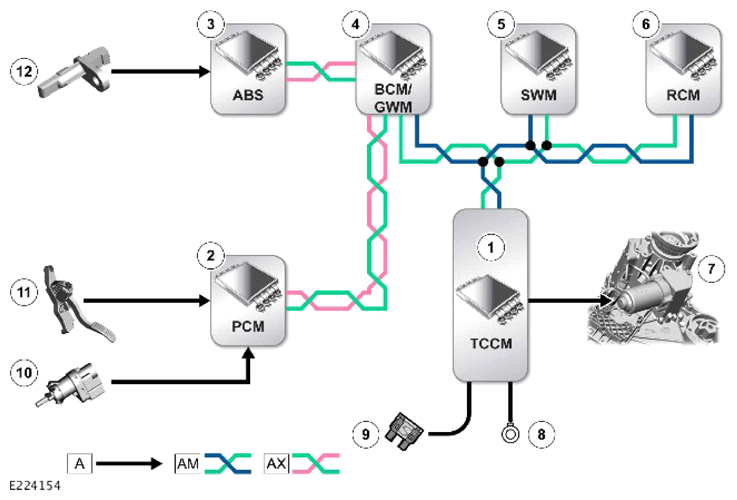

Control Diagram - 1 Of 1
A = HARDWIRED: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AX = FLEXRAY.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Transfer Case Control Module (TCCM) |
| 2 | Powertrain Control Module (PCM) |
| 3 | Anti-lock Brake System (ABS) control module |
| 4 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 5 | Steering Wheel Module (SWM) |
| 6 | Restraints Control Module (RCM) |
| 7 | Electric hydraulic pump |
| 8 | Ground |
| 9 | Power supply |
| 10 | Wheel speed sensor (quantity 4) |
| 11 | Accelerator Pedal Position (APP) sensor |
| 12 | Brake pedal switch |
