Transfer Case Front Output Seal (G2011757): Installation

The following step(s) applies to:

All vehicles

1. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

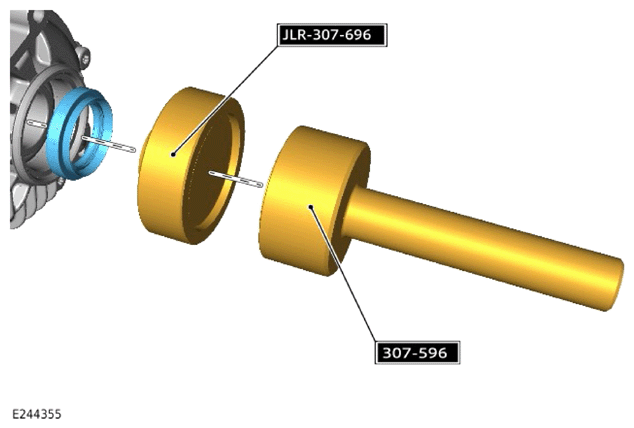

   Using the special tools install a new front output seal.

   Special Tool(s): JLR-307-696  , 307-596

   Renew Part: Transfer case front output shaft oil seal  Quantity: 1.

2. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Install a new circlip.

   Renew Part: Transfer case front output shaft snap ring  Quantity: 1.

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Install the drive flange.

4. CAUTION: Make sure that new bolts are installed.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Install the driveshaft to flange bolts.

   Renew Part: Driveshaft to front output flange bolts  Quantity: 1.

   Torque

   Stage 1: 40 Nm

   Stage 2: 90°

5. NOTE: If equipped.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   A new breather vent must always be installed.

   Renew Part: Breather  Quantity: 1.

   The following step(s) applies to:

   Vehicles with 3.0L diesel engine

6. Install the exhaust system.

   The following step(s) applies to:

   All vehicles

7. Fill the transfer case.

   Refer to: TRANSFER CASE DRAINING AND FILLING .
