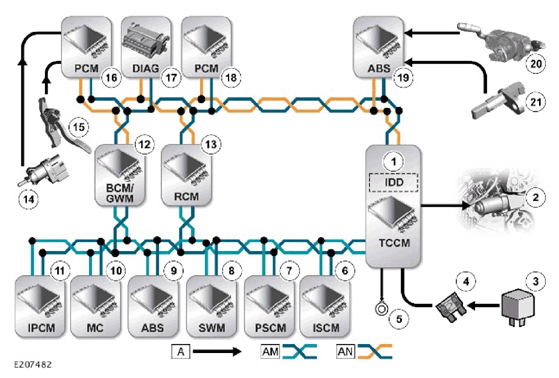

Control Diagram
A = HARDWIRE: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Transfer Case Control Module (TCCM) - Integrated intelligent driveline dynamics |
| 2 | Hydraulic control pump |
| 3 | All-Wheel Drive (AWD) relay located in the Engine Junction Box (EJB) |
| 4 | Switched battery voltage supply - controlled by Battery Control Module/Gateway Module (BCM/GWM) assembly |
| 5 | TCCM - ground |
| 6 | Integrated Suspension Control Module (ISCM) |
| 7 | Power Steering Control Module (PSCM) |
| 8 | Steering Wheel Module (SWM) |
| 9 | Anti-lock brake system (ABS) control module |
| 10 | Infotainment Master Controller (IMC) |
| 11 | Image Processing Control Module (IPCM) |
| 12 | BCM/GWM assembly |
| 13 | Restraints Control Module (RCM) |
| 14 | Brake switch |
| 15 | Accelerator pedal |
| 16 | Powertrain Control Module (PCM) |
| 17 | Diagnostic connector |
| 18 | Instrument Cluster (IC) |
| 19 | ABS control module |
| 20 | Steering Angle Sensor Module (SASM) |
| 21 | Wheel speed sensor |
