Component Location

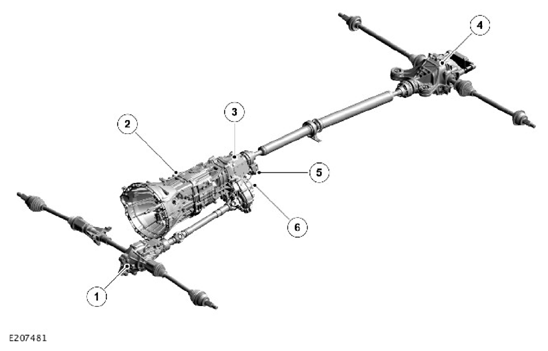

| ITEM | DESCRIPTION |
|---|---|
| 1 | Front differential |
| 2 | Transmission |
| 3 | Transfer case |
| 4 | Rear differential |
| 5 | Mass damper |
| 6 | Transfer Case Control Module (TCCM) |
| ITEM | DESCRIPTION |
|---|---|
| 1 | Output flange rear driveshaft |
| 2 | Bleed valve |
| 3 | Breather |
| 4 | Fill/level plug (upper sump) |
| 5 | Drain plug (upper sump) |
| 6 | Transfer Case Control Module (TCCM) |
| 7 | Electro hydraulic actuator |
| ITEM | DESCRIPTION |
|---|---|
| 1 | Transmission input |
| 2 | Cover |
| 3 | Output front driveshaft |
| 4 | Drain plug (lower sump) |
| 5 | Fill/level plug (lower sump) |
