Suspension System - General Information -- F-Pace (X761)
>>
Suspension System - General Information (G1946413)
>>
Diagnosis And Testing
>>
Suspension System (G1823481)
>>
Control Arm Graphics (Front Suspension)
>>

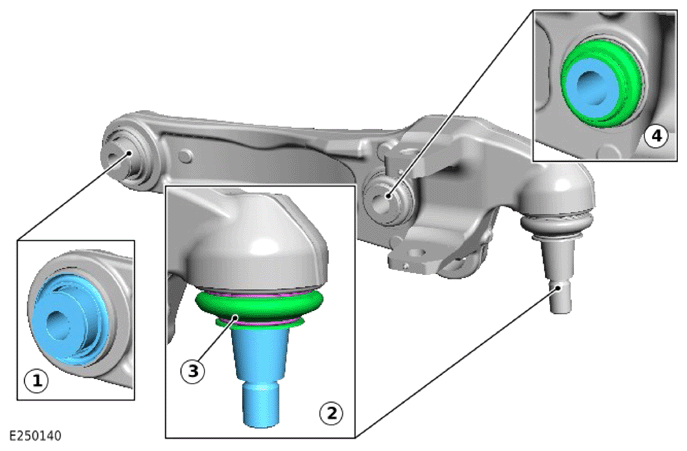

Front Lower Control Arm
Front Lower Control Arm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CALL OUT
COMPONENT NAME
1.
Bush
2.
Ball Joint
3.
Boot
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
