Rear Suspension Vertical Accelerometer - INGENIUM 14-2.0L Diesel/INGENIUM 14 2.0L Petrol/TDV6 3.0L Diesel/V6 S/C 3.0L Petrol (G1903639): Removal
CAUTION:
The accelerometer is an extremely delicate component and can easily be rendered unserviceable. Never use an accelerometer which has been dropped or subjected to mistreatment of any type.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
- Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

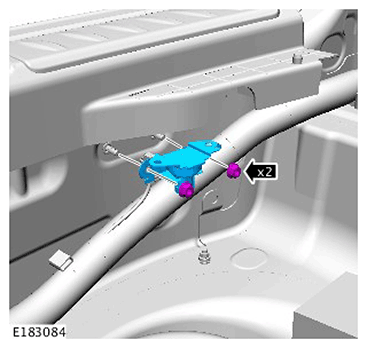

Torque: 7 Nm
