Front Suspension Vertical Accelerometer - Vs S/C S.0L Petrol (G2268808): Removal

CAUTION: The accelerometer is an extremely delicate component and can easily be rendered unserviceable. Never use an accelerometer which has been dropped or subjected to mistreatment of any type.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for left side components, right side components are similar.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Remove the front wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER - V8 S/C 5.0L PETROL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

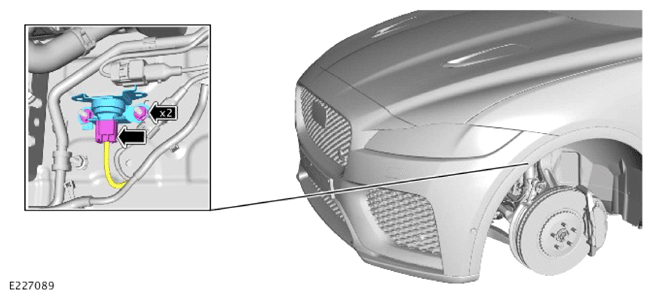

- Disconnect the electrical connector.
- Remove the 2 nuts.
- Remove the front suspension vertical accelerometer.
