Adaptive Damping Module (G1903638): Removal

NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

  2. Refer to: LOADSPACE SIDE TRIM PANEL .

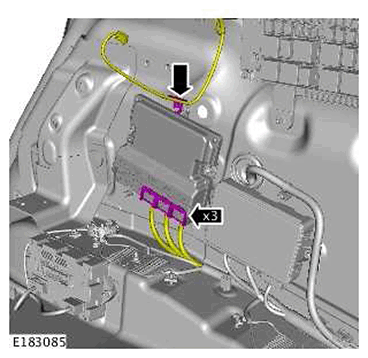

  3. G11439495Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

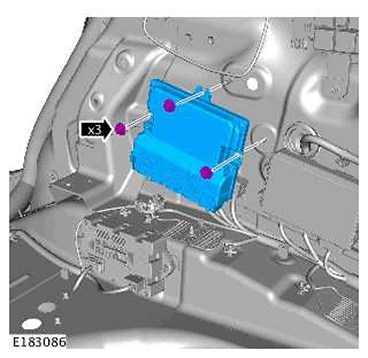

  4. G11439496Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 6 Nm
