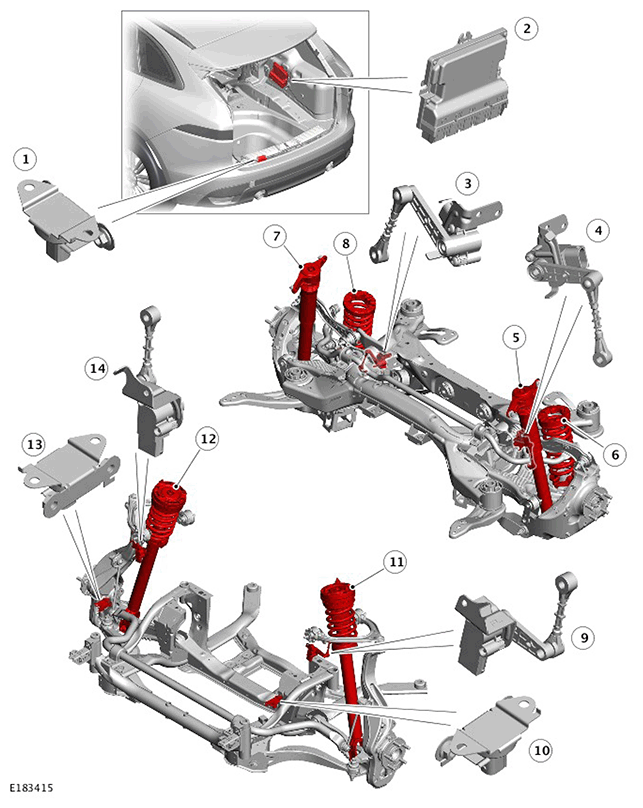

Component Location
| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear accelerometer |
| 2 | Chassis Control Module (ISCM) |
| 3 | Rear-right height sensor |
| 4 | Rear-left height sensor |
| 5 | Rear-left adaptive shock absorber |
| 6 | Rear-left spring |
| 7 | Rear-right adaptive shock absorber |
| 8 | Rear-right spring |
| 9 | Front-left height sensor |
| 10 | Front-left accelerometer |
| 11 | Front-left adaptive shock absorber and spring assembly |
| 12 | Front-right adaptive shock absorber and spring assembly |
| 13 | Front-right accelerometer |
| 14 | Front-right height sensor |
