Chassis Control Module

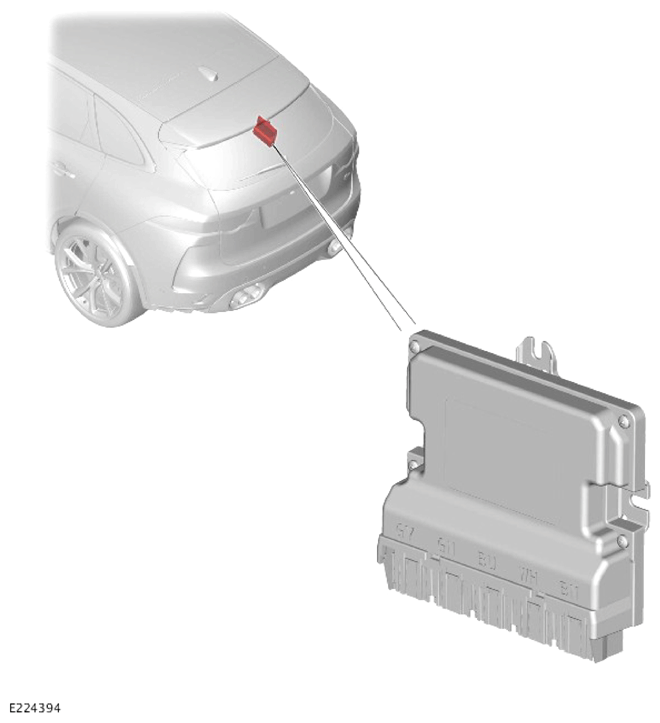

The Chassis Control Module (CHCM) is located behind the luggage compartment side trim panel on the right side. The CHCM is attached to a bracket with 3 nuts. The bracket is secured to the vehicle body.
The CHCM is the main controller of the Adaptive Damping (AD) system. The CHCM monitors the height of each corner of the vehicle via the 4 height sensors, which are mounted in-board of each road wheel.
