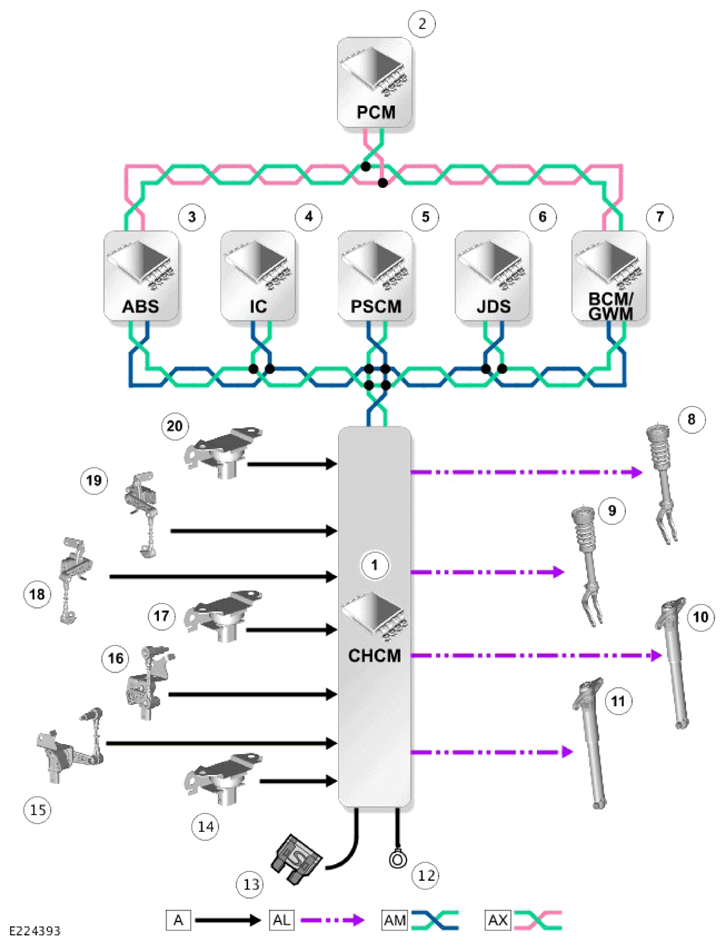

Control Diagram
A. = HARDWIRED: Al_ = PULSE WIDTH MODULATION [RWM]: AM = HIGH SPEED [HS] CONTROLLER AREA NETWORK [CAN] CHASSIS SYSTEMS BUS: AX = FLEXRAY BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Chassis Control Module (CHCM) |
| 2 | Powertrain Control Module (PCM) |
| 3 | Anti-lock Brake System (ABS) control module |
| 4 | Instrument Cluster (IC) |
| 5 | Power Steering Control Module (PSCM) |
| 6 | JaguarDrive Switchpack (JDS) |
| 7 | Body Control Module/Gateway Module (BCM/GWM) |
| 8 | Front right adaptive shock absorber and coil spring assembly |
| 9 | Front left adaptive shock absorber and coil spring assembly |
| 10 | Rear right adaptive shock absorber |
| 11 | Rear left adaptive shock absorber |
| 12 | Ground |
| 13 | Power supply |
| 14 | Front left accelerometer |
| 15 | Front left height sensor |
| 16 | Front right height sensor |
| 17 | Front right accelerometer |
| 18 | Rear right height sensor |
| 19 | Rear left height sensor |
| 20 | Rear accelerometer |
