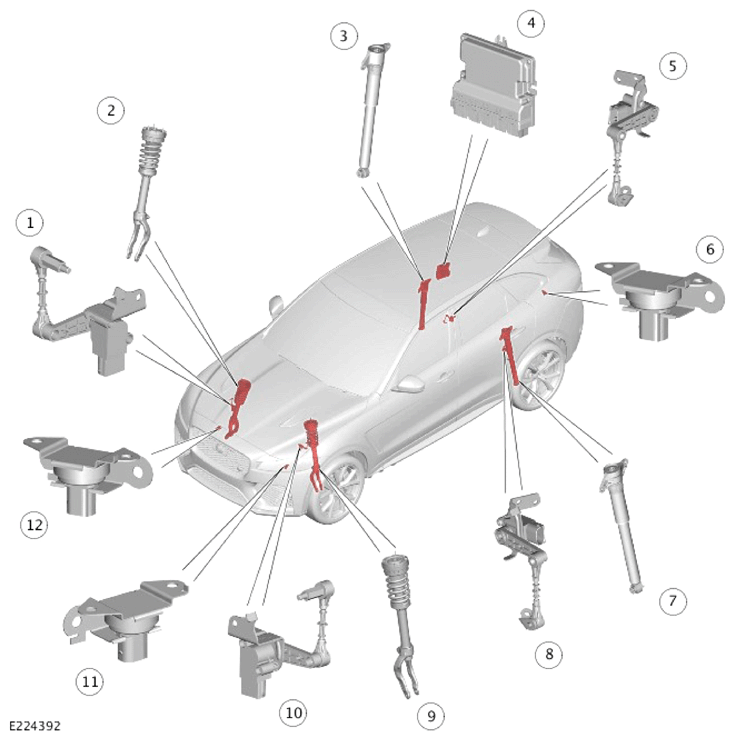

Component Location
| ITEM | DESCRIPTION |
|---|---|
| 1 | Front right height sensor |
| 2 | Front right adaptive shock absorber and coil spring assembly |
| 3 | Rear right adaptive shock absorber |
| 4 | Chassis Control Module (CHCM) |
| 5 | Rear right height sensor |
| 6 | Rear accelerometer |
| 7 | Rear left adaptive shock absorber |
| 8 | Rear left height sensor |
| 9 | Front left adaptive shock absorber and coil spring assembly |
| 10 | Front left height sensor |
| 11 | Front left accelerometer |
| 12 | Front right accelerometer |
