Turbocharger (G2270371): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new turbocharger gasket.

Renew Part: Turbocharger to exhaust manifold gasket  Quantity: 1.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the turbocharger.
• Install and tighten the 2 nuts.

  Torque: 10 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 2 nuts.

Torque  : 10 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the nuts in the sequence illustrated.

Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the electrical connector.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

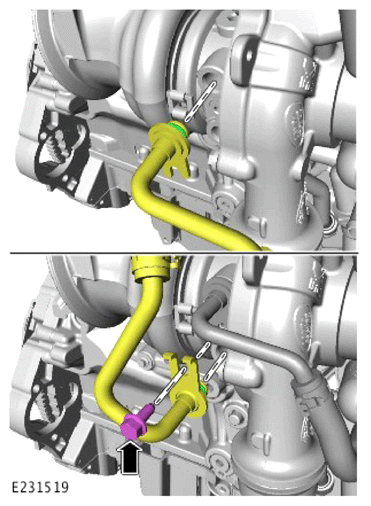

• Install 2 new O-ring seals.

  Renew Part: Turbocharger oil return pipe seals  Quantity: 2.

• Install the pipe in the sequence illustrated.
• Install and tighten the bolt.

  Torque: 11 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Connect the pipe.
• Connect the electrical connector.
• Install the clip.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the two bolts.

Torque  : 25 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install a new gasket.

  Renew Part: Exhaust pipe to turbocharger gasket  Quantity: 1.

• Install and tighten a new clamp.

  Renew Part: Front exhaust clamp  Quantity: 1.

  Torque: 12 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the 2 pipes.
• Install and tighten the bolt.

  Torque  : 12 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install 2 new washers.

  Renew Part: Turbocharger oil feed pipe banjo bolt washers  Quantity: 2.

• Install the pipe.
• Install and tighten the bolt.

  Torque  : 18 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the heatshield.
• Install the clip.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the heatshield.
• Install and tighten the 3 bolts.

  Torque  : 9 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the heatshield.
• Install and tighten the 4 bolts.

  Torque  : 9 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

• Install the heatshield.
• Install and tighten the 2 bolts.

  Torque  : 9 Nm

Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

Refer to: ENGINE UNDERSHIELD - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/V6 S/C 3.0L PETROL

Refer to: INTAKE AIR RESONATOR

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

Refer to: SPECIFICATIONS
