Fuel Pump Driver Module
WARNING: This page is about a different variant/trim than selected.

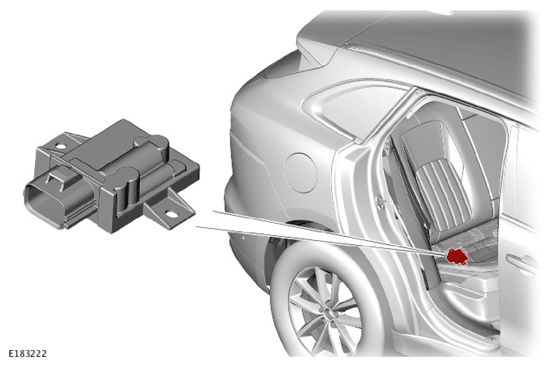

The Fuel Pump Driver Module (FPDM) is located behind the right second row seat. The module is attached to a bracket and secured by 2 nuts to the rear underfloor reinforcement panel.
The Low Pressure (LP) fuel pump operation is controlled by the FPDM which is controlled by the Powertrain Control Module (PCM). The FPDM receives a Pulse Width Modulation (PWM) signal from PCM. The FPDM outputs the required power to the Low Pressure (LP) fuel pump to provide the fuel flow and pressure output.
The FPDM has a single wiring harness connector. The wiring harness connector has the following connections:
- Power supply from the fuel pump relay in the Rear Junction Box (RJB).
- PWM signal from the PCM.
- Power to the LP fuel pump in the fuel pump module. (quantity 3)
- Ground for the LP fuel pump in the fuel pump module.
- Ground.
