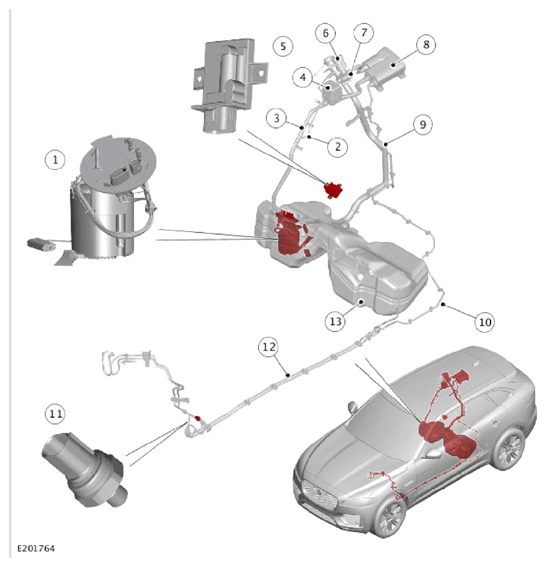

Component Location - 3 Of 4 - North AMERICAN Specification And China (CN6) Vehicles Only
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel pump module |
| 2 | Fuel vapor pipe - Fuel tank breather to fuel filler pipe |
| 3 | Fuel tank breather |
| 4 | Fuel vapor separator |
| 5 | Fuel Pump Driver Module (FPDM) |
| 6 | Diagnostic Module Tank Leakage (DMTL) air filter |
| 7 | DMTL pump |
| 8 | Evaporative emissions canister |
| 9 | Fuel filler pipe |
| 10 | Fuel vapor pipe - Evaporative emission canister to the purge valve |
| 11 | Low fuel pressure sensor |
| 12 | Fuel line |
