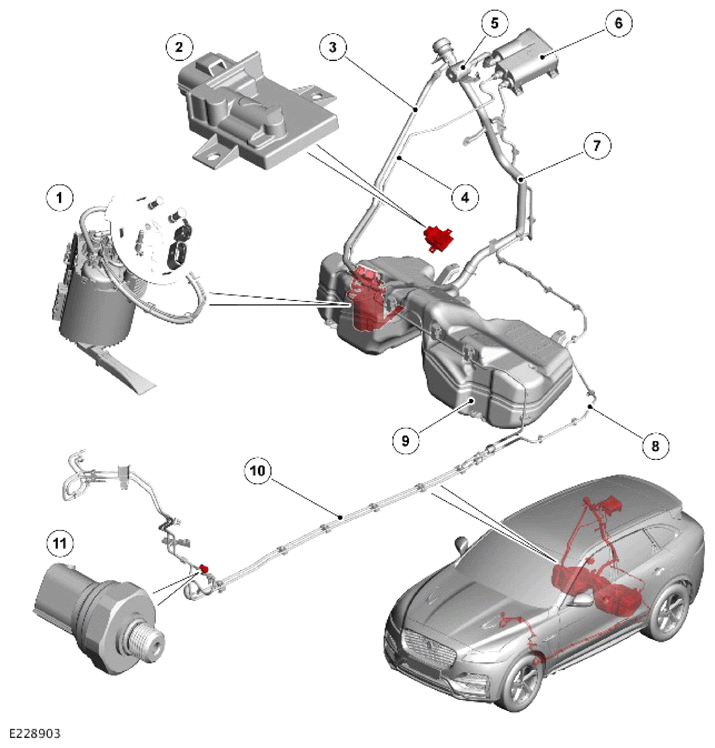

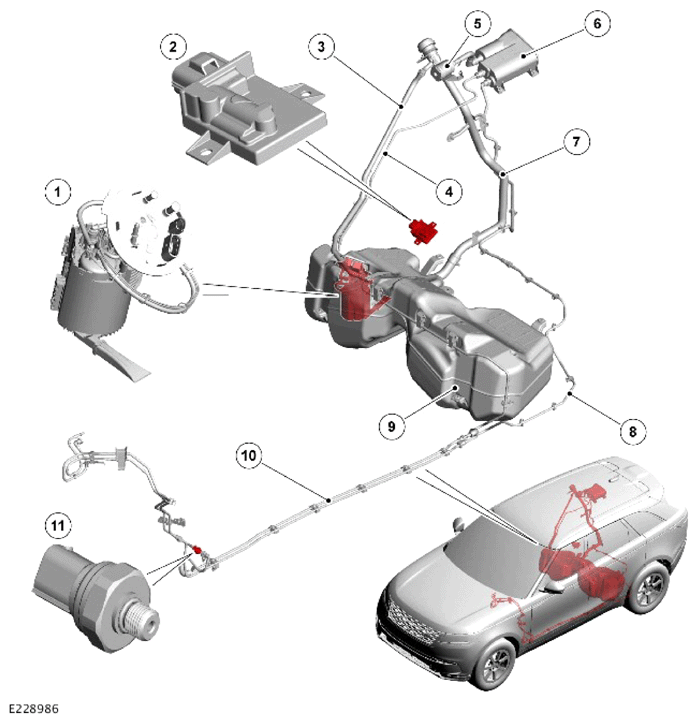

Component Location - 2 Of 4 - EU6D Vehicles Only
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel pump module |
| 2 | Fuel Pump Driver Module (FPDM) |
| 3 | Fuel tank breather |
| 4 | Fuel vapor pipe - Fuel tank to the evaporative emission canister |
| 5 | Evaporative emissions canister air filter |
| 6 | Evaporative emissions canister |
| 7 | Fuel filler pipe |
| 8 | Fuel vapor pipe - Evaporative emission canister to the purge valve |
| 9 | Fuel tank assembly |
| 10 | Fuel line |
| 11 | Low fuel pressure sensor |
