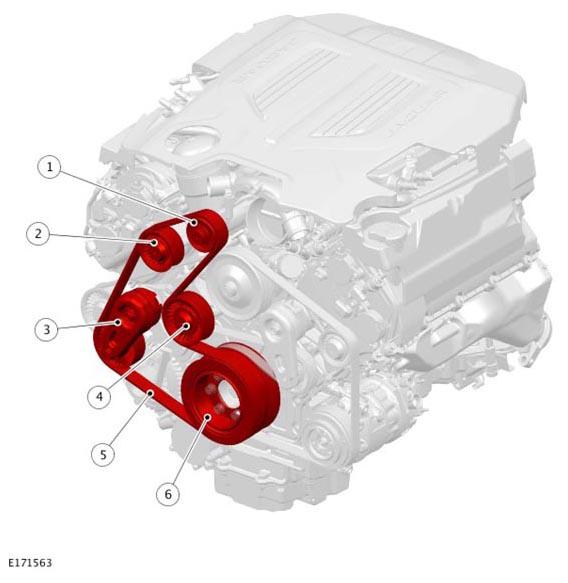

Component Location Sheet 2 Of 2 - Secondary Drive Belt
WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
| ITEM |
DESCRIPTION |
| 1 |
Supercharger drive pulley |
| 2 |
Idler pulley |
| 3 |
Belt tensioner |
| 4 |
Idler pulley |
| 5 |
Secondary drive belt |
| 6 |
Crankshaft pulley and vibration damper assembly |
